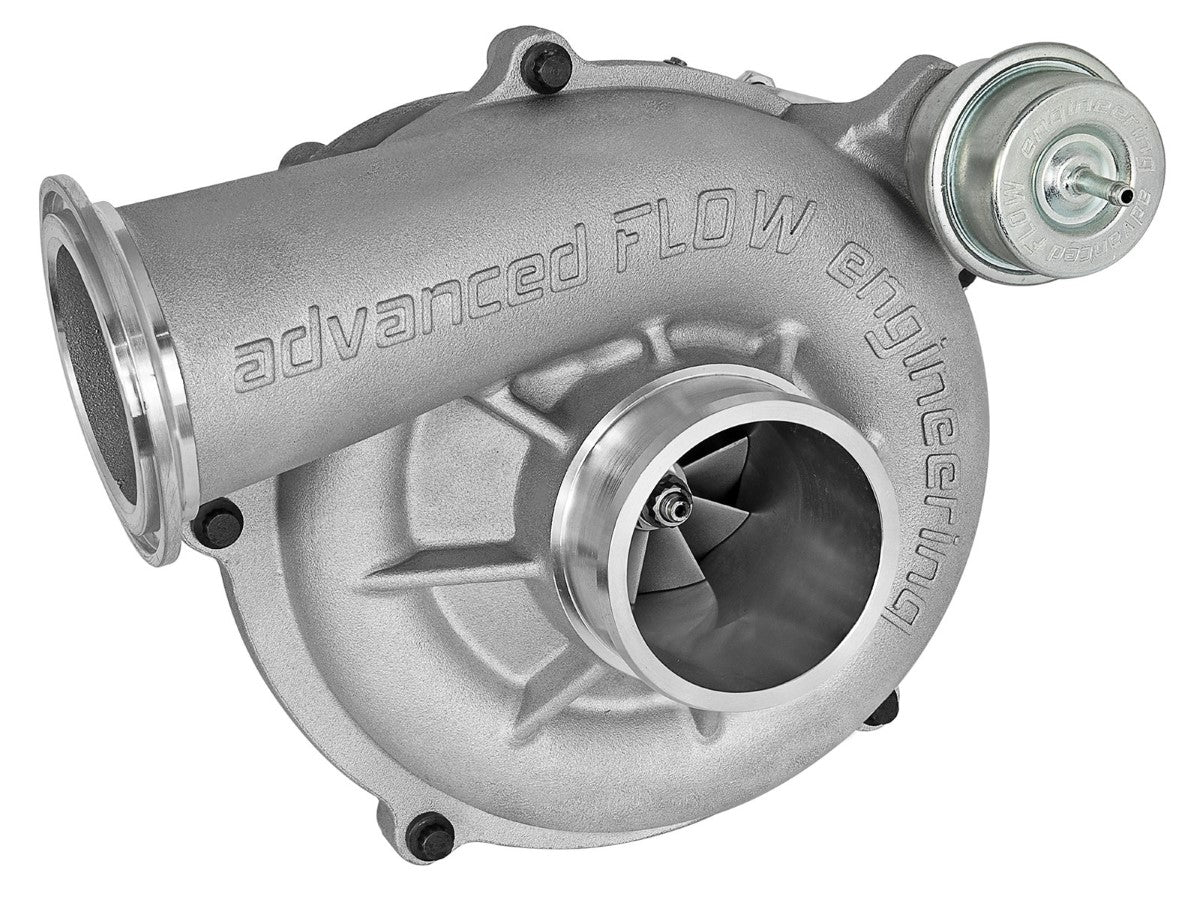

aFe 46-60070 BladeRunner Street Series Turbocharger

aFe 46-60070 BladeRunner Street Series Turbocharger

Specifications:
Compressor Inducer - 60 mm
Compressor Exducer - 80 mm/ Trim 56
Turbine Inducer - 77 mm
Turbine Exducer - 67.5 mm/ Trim 77
Exhaust A/R - 0.84

Direct Replacement:
This turbo is a direct, bolt-on replacement unit that installs with ease. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical. An optional high-flow turbine outlet also helps lower exhaust gas temperatures.

Compressor:
A356 aluminum housing utilizes OE inlet and v-band outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset but is adjustable.

Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
