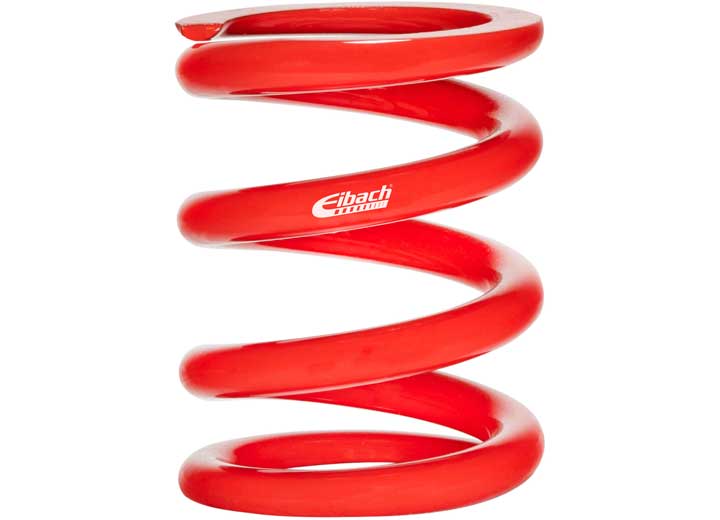

Eibach 0225.200.1500 Bump Spring - Dia. 1.36 in | Len: 2.25 in | Rate: 1500 lbs/in

Features

Eibach BUMP-SPRINGS are designed to deliver a more consistent, tunable solution over standard elastomer, poly, or rubber bump stops. The compact size and maximized travel is a perfect fit for pavement and dirt series racing.

• Bump Spring Caps are sold separately based on shock shaft diameter
• Maximum Travel in All Rates with Repeatable Performance - Block and Sag Resistant
• Increases Aero Efficiency, Grip and Control at the Limit
• Made By Eibach in the U.S.A.
• Offers limitless tuning options for "soft spring" Dirt and Pavement Racers

Specifications

Bump Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
2.25	1.36 I.D.	1500	1.42	0.83	1242.00	0.04
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
57.00	35.00 I.D.	26.79	36.00	21.00	5525.00	0.02
