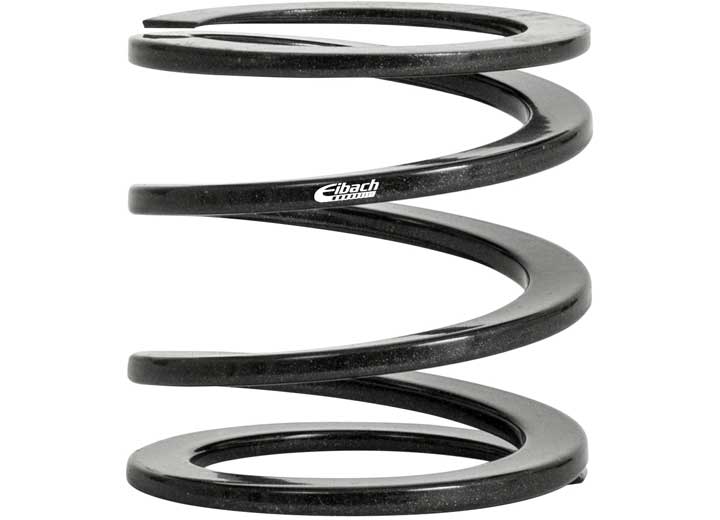

Eibach 0225.225.0250 ERS Linear Tender Spring - Dia. 2.25 in | Len: 3.78 in | Rate: 250 lbs/in

Features

Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel

• Provides a Softer Initial Rate When Paired with a Main Spring
• Available in Linear or Progressive Rates
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Tender Spring (Linear)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
3.78	2.25 I.D.	250	1.50	2.28	565.00	2.29
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
96.00	57.00 I.D.	4.46	38.00	58.00	2512.00	1.04
