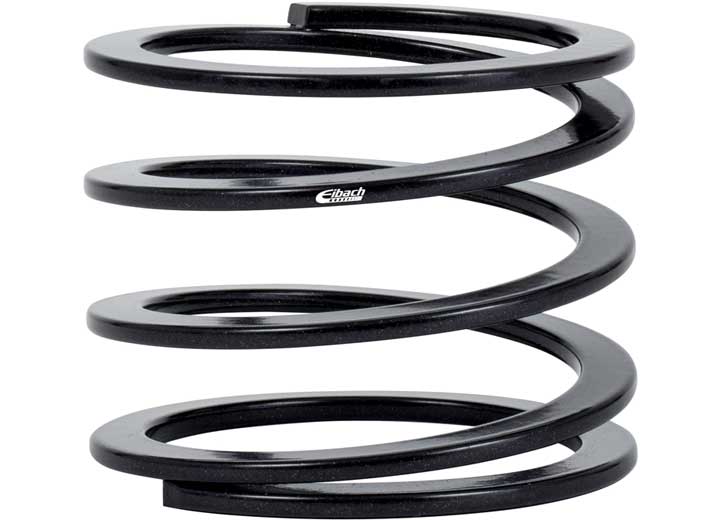

Eibach 0350.300.0050 ERS Linear Tender Spring - Dia. 3.00 in | Len: 4.72 in | Rate: 50 lbs/in

Features

Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel

• Provides a Softer Initial Rate When Paired with a Main Spring
• Available in Linear or Progressive Rates
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Tender Spring (Linear)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
4.72	3.00 I.D.	50	1.22	3.50	175.00	1.41
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
120.00	76.00 I.D.	0.89	31.00	89.00	778.00	0.64
