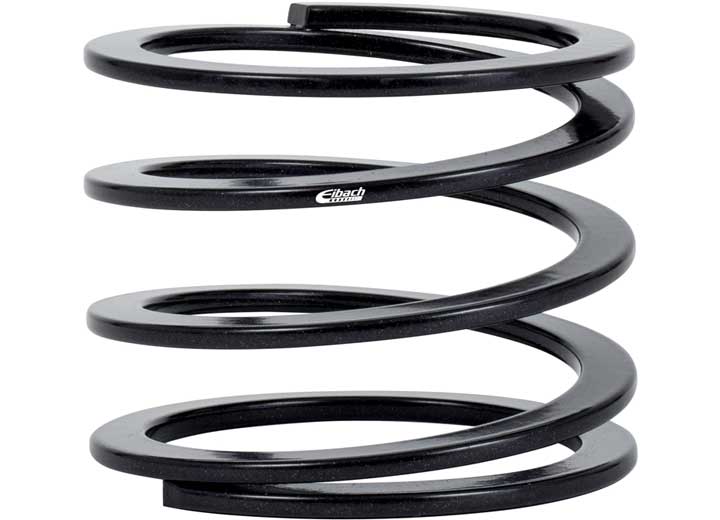

Eibach 0400.500.0050 ERS Linear Tender Spring - Dia. 5.00 in | Len: 5.00 in | Rate: 50 lbs/in

Features

Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel

• Provides a Softer Initial Rate When Paired with a Main Spring
• Available in Linear or Progressive Rates
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Tender Spring (Linear)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
5.00	5.00 O.D.	50	1.34	3.66	3613.00	1.13
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
127.00	127.00 O.D.	0.89	34.00	93.00	812.00	0.51
