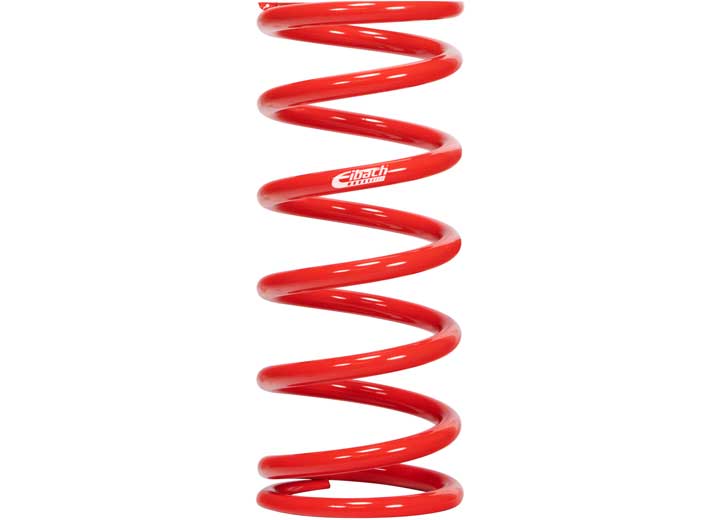

Eibach 0500.163.0135 ERS Linear Main Spring - Dia. 1.63 in | Len: 5.00 in | Rate: 135 lbs/in

Features

Eibach's STANDARD Coilover Springs are designed to precise tolerances featuringEibach'slegendary consistency in rate, linearity and measurement. The original spring trusted by racers around the world.

• Eibach Coilover Springs Designed Specifically for Quarter Midget Racers
• Maximum Travel in Combination with Smallest Block Heights
• Ultra-Lightweight for Reduced Unsprung Mass
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Coilover Spring (Red)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
5.00	1.63 I.D.	135	1.78	3.22	434.00	0.53
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
127.00	41.00 I.D.	2.41	45.00	82.00	1931.00	0.24
