Eibach

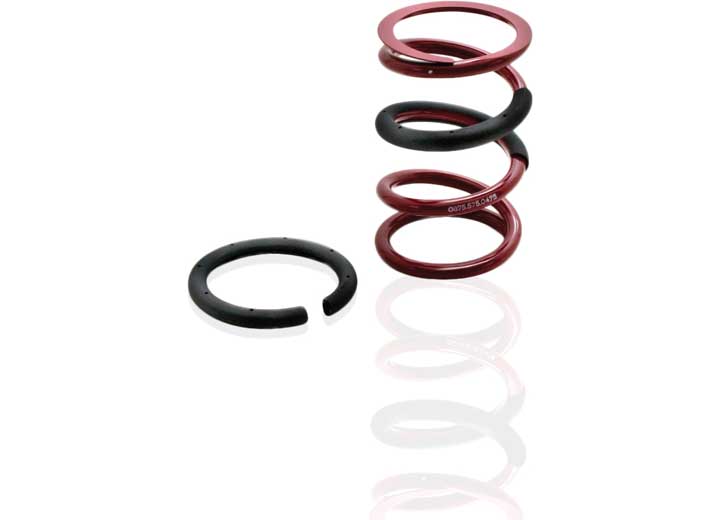

Eibach C500 Eibach ERS 5.35 in. Length x 1.42 in. ID 3.03in Block Height Formula Springs
Eibach C500 Eibach ERS 5.35 in. Length x 1.42 in. ID 3.03in Block Height Formula Springs
Regular price
$100.00
Regular price
$111.11
Sale price
$100.00
Unit price
/
per
Couldn't load pickup availability
Eibach C500 ERS Main-Metric - Dia. 1.42 in | Len: 5.35 in | Rate: 500 lbs/in
Features
Eibach's METRIC Coilover Springs are designed to precise tolerances featuringEibach'slegendary consistency in rate, linearity and measurement. The original spring trusted by racers around the world.- 36mm I.D. Formula Springs Available in a Full Range of Rates
- Maximum Travel in Combination with Smallest Block Heights
- Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
- Precision Tolerances - The Tightest in the Industry
- Each Spring Individually Tested and Rated
Specifications
Formula Spring| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 5.35 | 1.42 I.D. | 500 | 3.03 | 2.32 | 1150.00 | 1.19 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 136.00 | 36.00 I.D. | 8.94 | 77.00 | 59.00 | 5117.00 | 0.54 |
