JE Pistons

JE Pistons JG1004-3189 Piston Ring Set 3.189 in. Bore 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil 4 Cyl.

JE Pistons JG1004-3189 Piston Ring Set 3.189 in. Bore 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil 4 Cyl.

Regular price $183.99
Regular price $202.39 Sale price $183.99
Sale Sold out

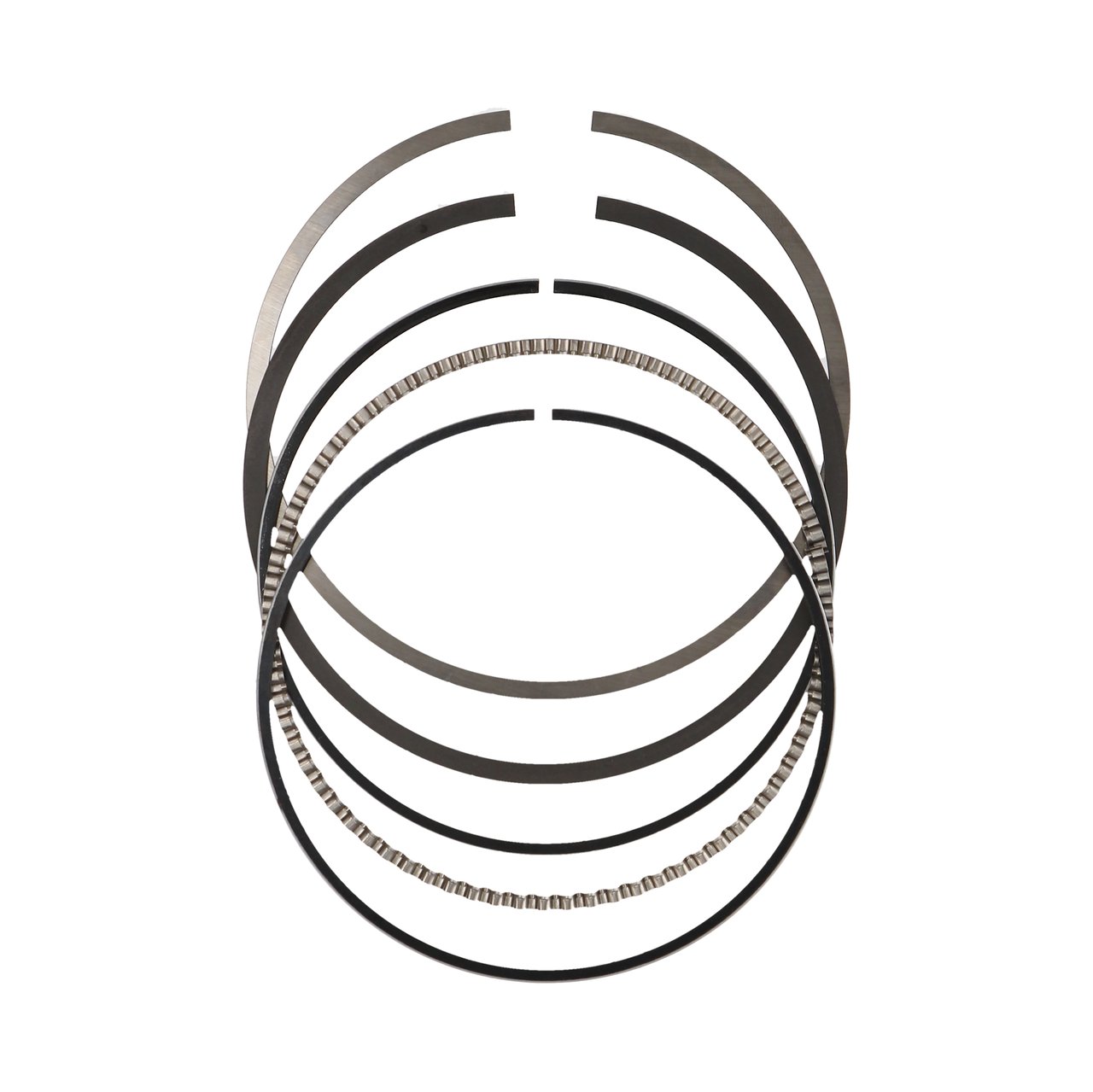

JE Pistons JG1004-3189 Piston Ring Set – 3.189 in. Bore – 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil – 4 Cyl.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

Bore Diameter

3.189|81.00 MM

Ring Type

3 Ring

File Fit

Yes

Top Ring Axial Height

0.80 MM

Top Ring Radial Width

0.126 IN

Top Compression Ring Thickness

0.0394 IN

Top Ring Facing Material

Nitride

Top Ring Material

Carbon Steel

Top Ring Shape

Barrel Face, Back Cut, Neutral

Second Ring Axial Height

1.20 MM

Second Ring Radial Width

0.138 IN

Second Compression Ring Thickness

0.0472 IN

Second Ring Facing Material

Phosphate

Second Ring Shape

Napier, Back Cut, Neutral

Oil Ring Axial Height

2.80 MM

Oil Ring Radial Width

0.128 IN

Oil Ring Thickness

0.110 IN

Third Ring Facing Material

Carbon Steel

Third Ring Material

Carbon Steel

Third Ring Shape

Flex Vent

Ring Set Thickness

0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
