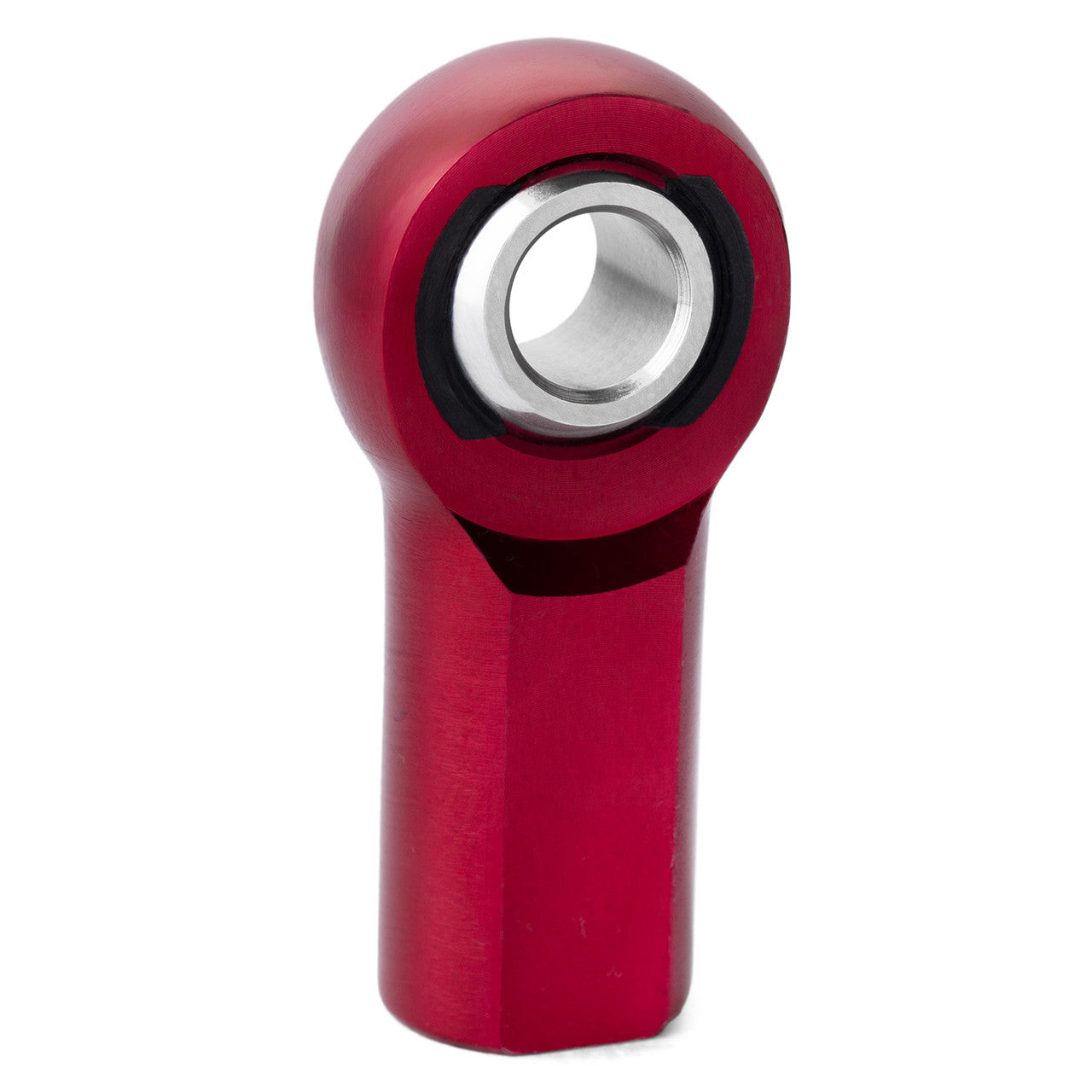

QA1 AFR3 A Series Aluminum Loader Slot Rod End 3/16in. Bore 10-32 RH Female Thread PTFE Lined

QA1 AFR3 A Series Aluminum Loader Slot Rod End 3/16in. Bore 10-32 RH Female Thread PTFE Lined

QA1’s AF Series lightweight aluminum female rod ends use a unique loader slot design to save weight in performance applications. They feature a reinforced Nylon race with self-lubricating PTFE that also helps keep out dirt and debris. The AF Series rod ends are more than 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. Available with right- or left-hand threads. Stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
• BODY: Aircraft Aluminum 7075-T6, Anodized Red Color as Standard
• FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

• Rod End Series: A Series
• Style/Construction: Aluminum Loader Slot
• Bore: 0.1875in. or 3/16in.
• Thread Direction: RH
• Thread Size and Pitch: 10-32
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
