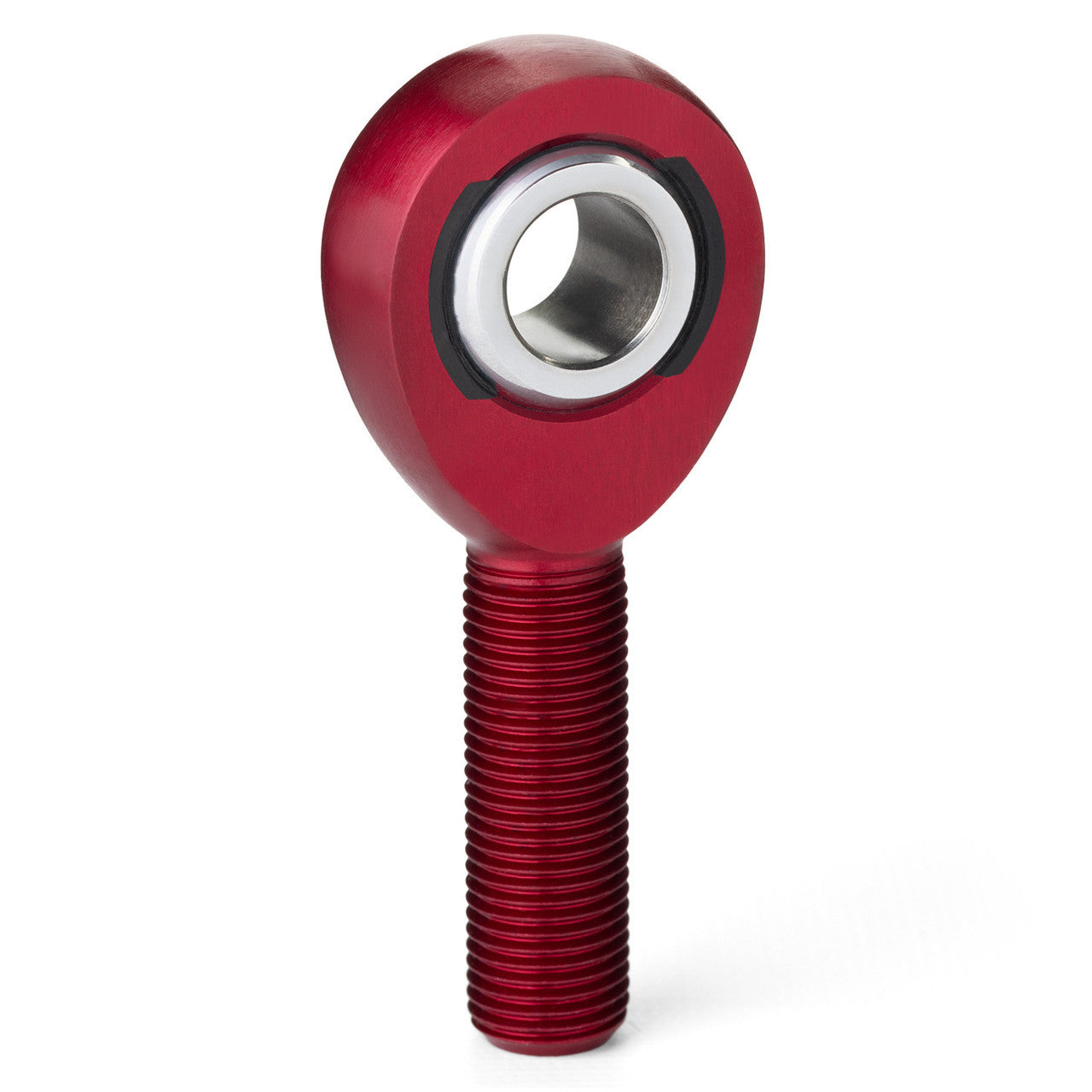

QA1 AMR10 A Series Aluminum Loader Slot Rod End 5/8in. Bore 5/8in.-18 RH Male Thread PTFE Lined

QA1 AMR10 A Series Aluminum Loader Slot Rod End 5/8in. Bore 5/8in.-18 RH Male Thread PTFE Lined

QA1’s AM Series lightweight aluminum male rod ends use a unique loader slot design to save weight in performance applications. They feature a reinforced Nylon race with self-lubricating PTFE that also helps keep out dirt and debris. AM Series rod ends are more than 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. Available with right- or left-hand threads. Stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
• BODY: Aircraft Aluminum 7075-T6, Anodized Red Color as Standard
• FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

• Rod End Series: A Series
• Style/Construction: Aluminum Loader Slot
• Bore: 0.6250in. or 5/8in.
• Thread Direction: RH
• Thread Size and Pitch: 5/8in.-18
• Male or Female Thread: Male
• PTFE Lined?: Yes
• Configuration: Standard
