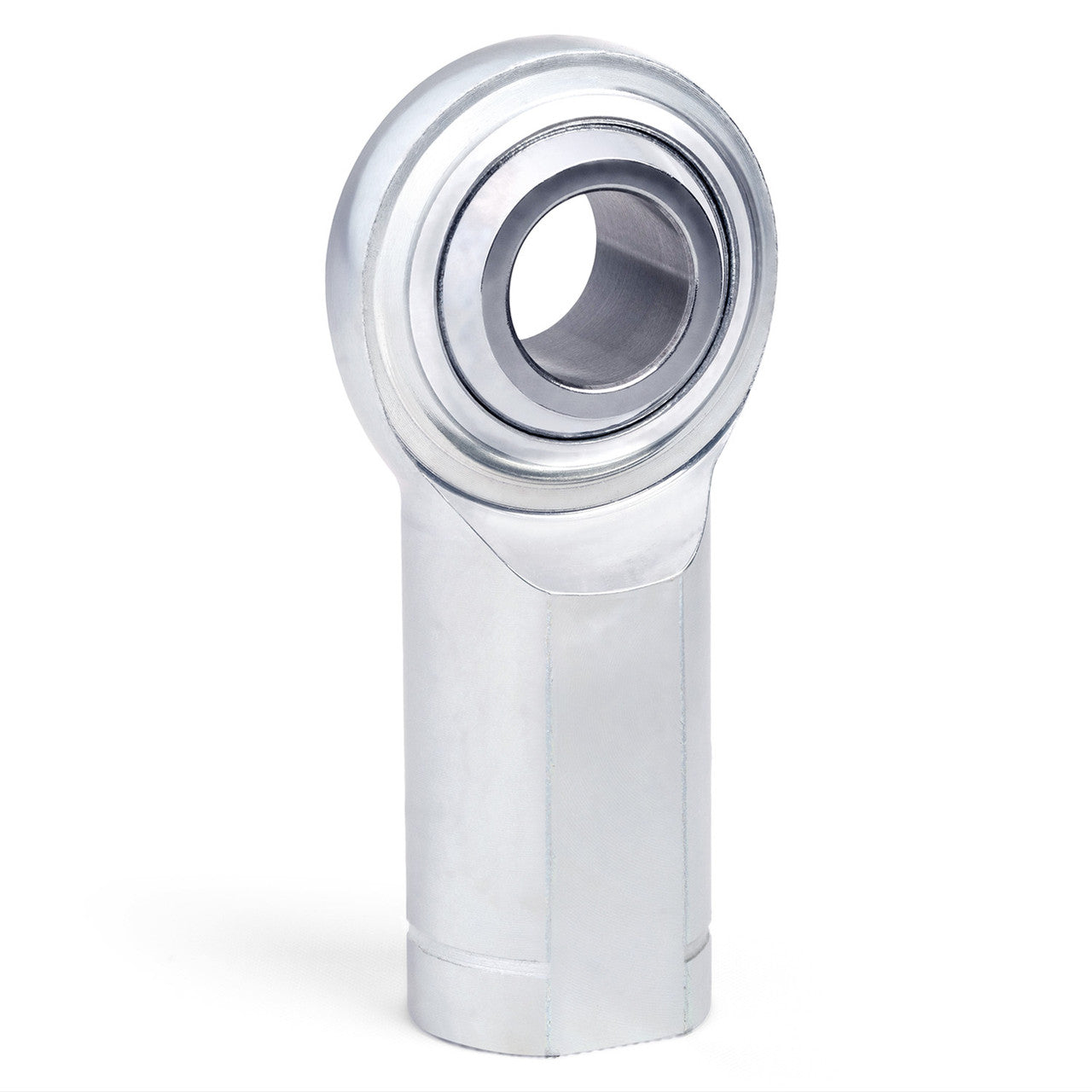

QA1 CFL4 C Series 2 Piece Carbon Rod End 1/4in. Bore 1/4in.-28 LH Female Thread

QA1 CFL4 C Series 2 Piece Carbon Rod End 1/4in. Bore 1/4in.-28 LH Female Thread

QA1’s CF Series carbon steel female rod ends are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• BODY: Carbon Steel, Protective Coated for Corrosion Resistance
• NOTE: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.

Specifications

• Rod End Series: C Series
• Style/Construction: 2 Piece Carbon
• Bore: 0.2500in. or 1/4in.
• Thread Direction: LH
• Thread Size and Pitch: 1/4in.-28
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
