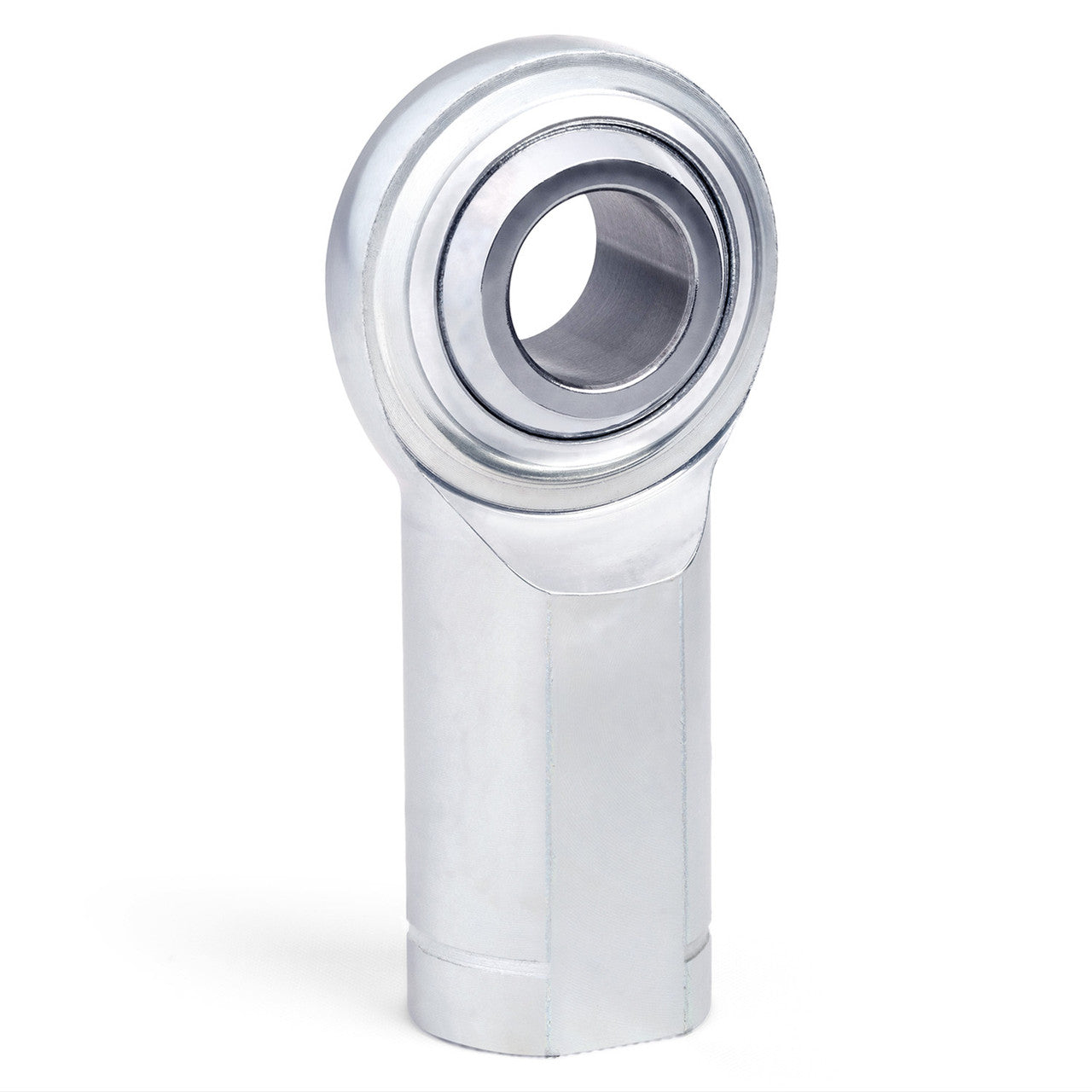

QA1 CFL4T C Series 2 Piece Carbon Rod End 1/4in. Bore 1/4in.-28 LH Female Thread PTFE Lined

QA1 CFL4T C Series 2 Piece Carbon Rod End 1/4in. Bore 1/4in.-28 LH Female Thread PTFE Lined

QA1’s CF-T Series carbon steel female rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• LINER: Self-Lubricating PTFE
• BODY: Carbon Steel, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: C Series
• Style/Construction: 2 Piece Carbon
• Bore: 0.2500in. or 1/4in.
• Thread Direction: LH
• Thread Size and Pitch: 1/4in.-28
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
