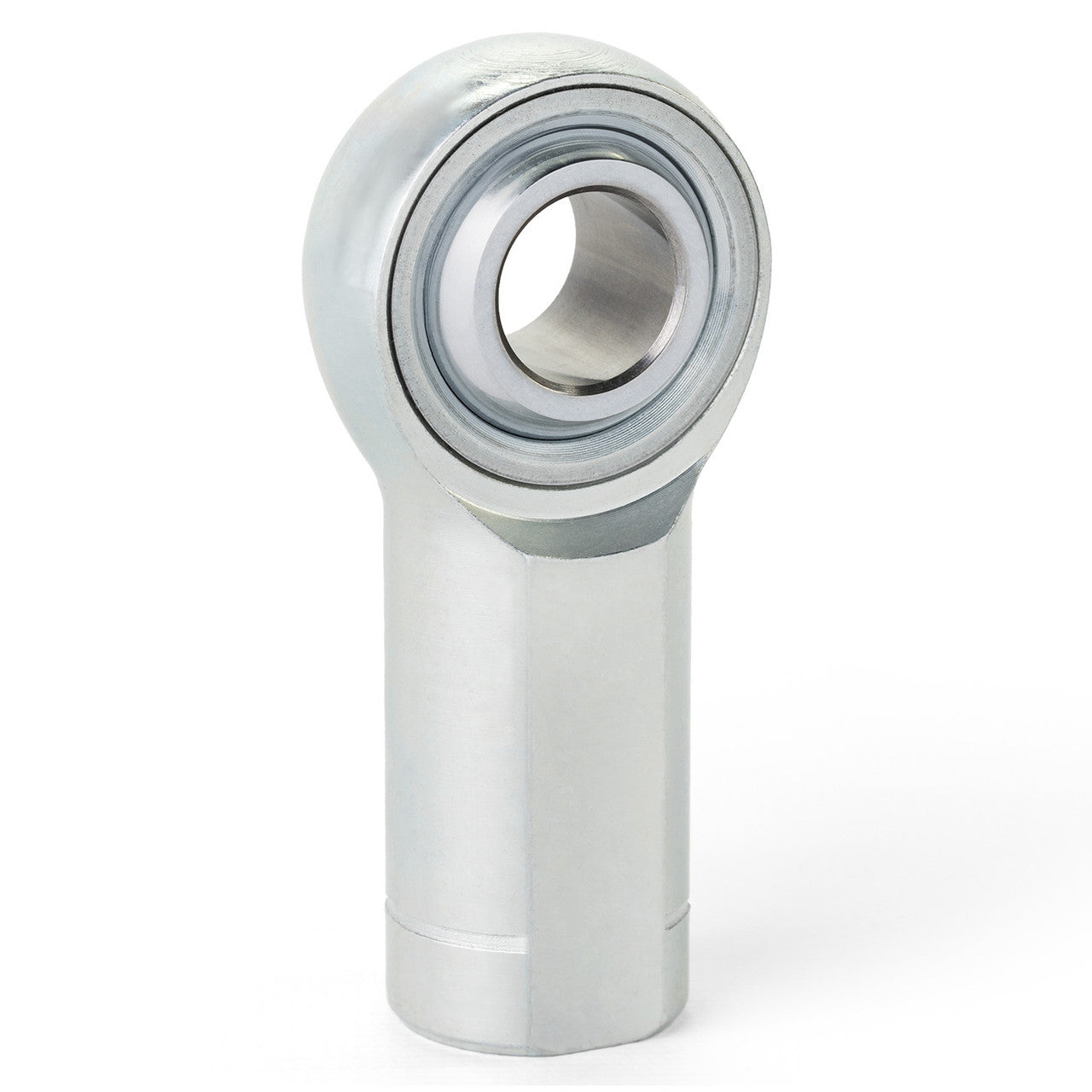

QA1 HFL16 H Series 3 Piece Alloy Rod End 1in. Bore 1-1/4in.-12 LH Female Thread

QA1 HFL16 H Series 3 Piece Alloy Rod End 1in. Bore 1-1/4in.-12 LH Female Thread

QA1's HF Series alloy/chromoly female rod ends are constructed using a traditional three-piece design. HF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These rod ends are heat treated and are available in right- or left-hand threads. Grease fittings and stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Alloy/Chromoly Steel
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: H Series
• Style/Construction: 3 Piece Alloy
• Bore: 1.0000in. or 1in.
• Thread Direction: LH
• Thread Size and Pitch: 1-1/4in.-12
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
