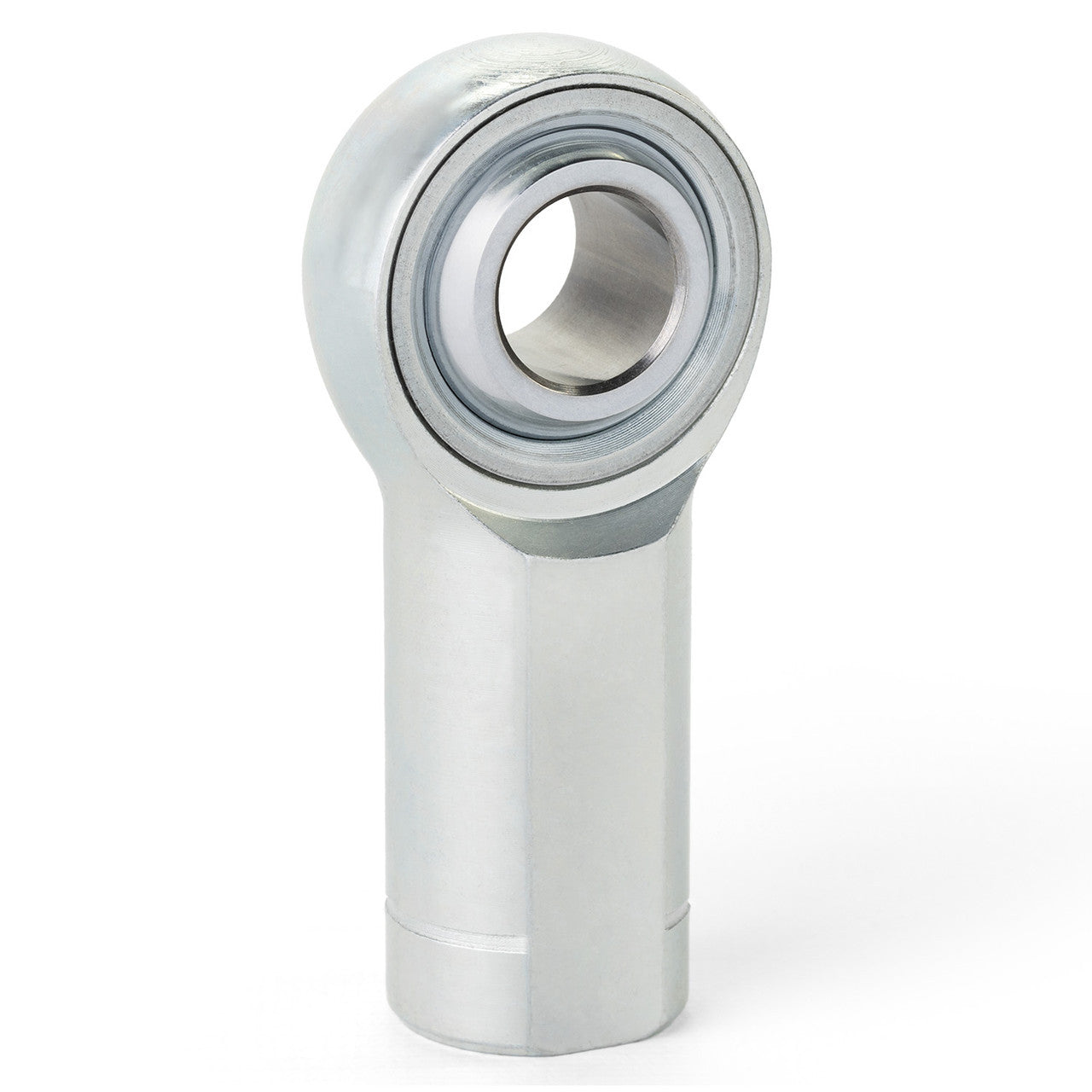

• QA1 HFL3T H Series 3 Piece Alloy Rod End 3/16in. Bore 10-32 LH Female Thread PTFE Lined
1 1

QA1

QA1 HFL3T H Series 3 Piece Alloy Rod End 3/16in. Bore 10-32 LH Female Thread PTFE Lined

QA1 HFL3T H Series 3 Piece Alloy Rod End 3/16in. Bore 10-32 LH Female Thread PTFE Lined

$17.89
$17.89 $17.89
Sale Sold out

QA1 HFL3T H Series 3 Piece Alloy Rod End 3/16in. Bore 10-32 LH Female Thread PTFE Lined

QA1's HF-T Series alloy/chromoly female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.

  • BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
  • RACE: Stainless Steel
  • LINER: Self-Lubricating PTFE
  • BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

  • Rod End Series: H Series
  • Style/Construction: 3 Piece Alloy
  • Bore: 0.1875in. or 3/16in.
  • Thread Direction: LH
  • Thread Size and Pitch: 10-32
  • Male or Female Thread: Female
  • PTFE Lined?: Yes
  • Configuration: Standard
