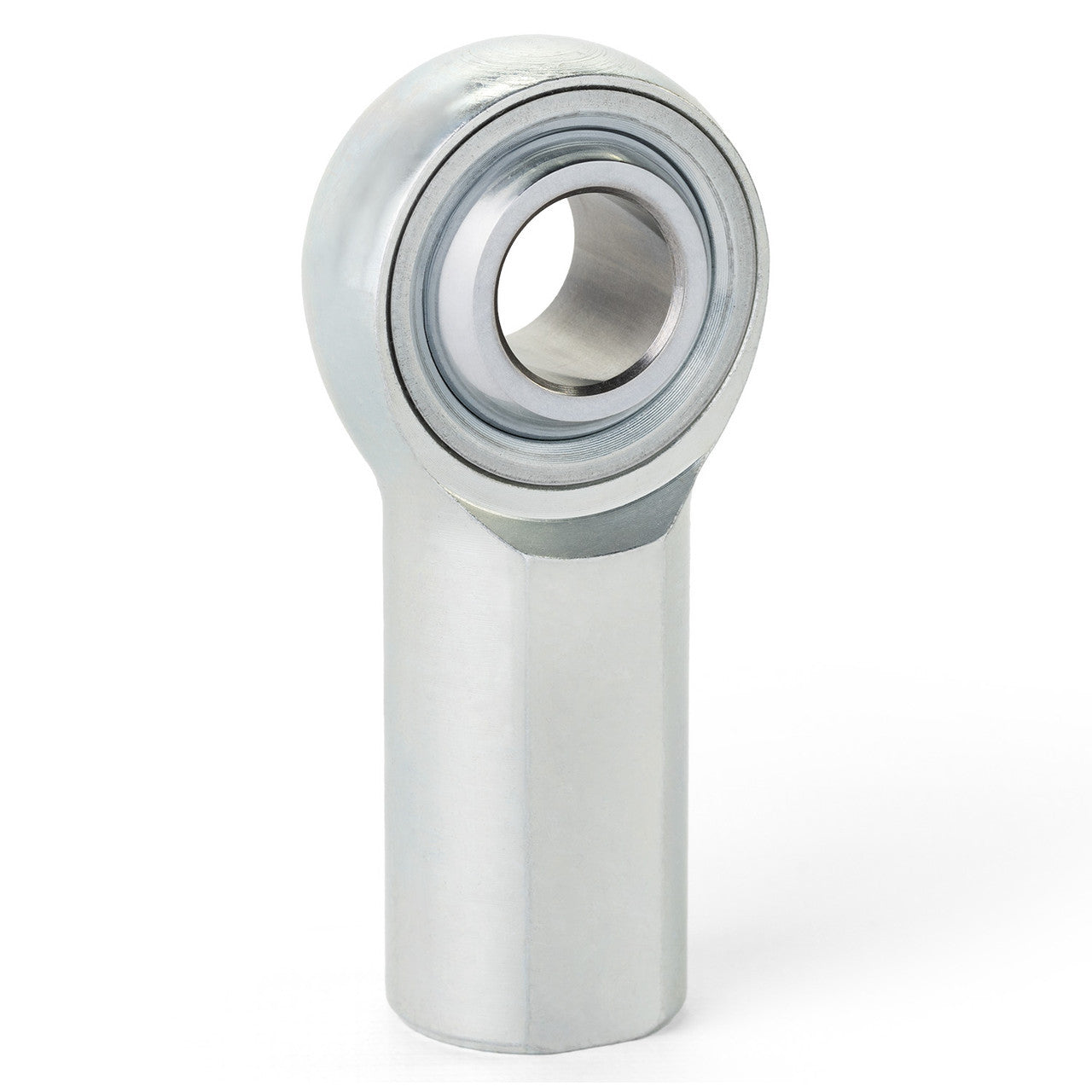

QA1 KFR7 K Series 3 Piece Carbon Rod End 7/16in. Bore 7/16in.-20 RH Female Thread

QA1 KFR7 K Series 3 Piece Carbon Rod End 7/16in. Bore 7/16in.-20 RH Female Thread

QA1’s KF Series carbon steel female rod ends are constructed using a traditional three-piece design. KF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Grease fittings and stud configurations are available. Also available in large bore sizes.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Alloy/Chromoly Steel, Heat Treated
• BODY: Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: K Series
• Style/Construction: 3 Piece Carbon
• Bore: 0.4375in. or 7/16in.
• Thread Direction: RH
• Thread Size and Pitch: 7/16in.-20
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
