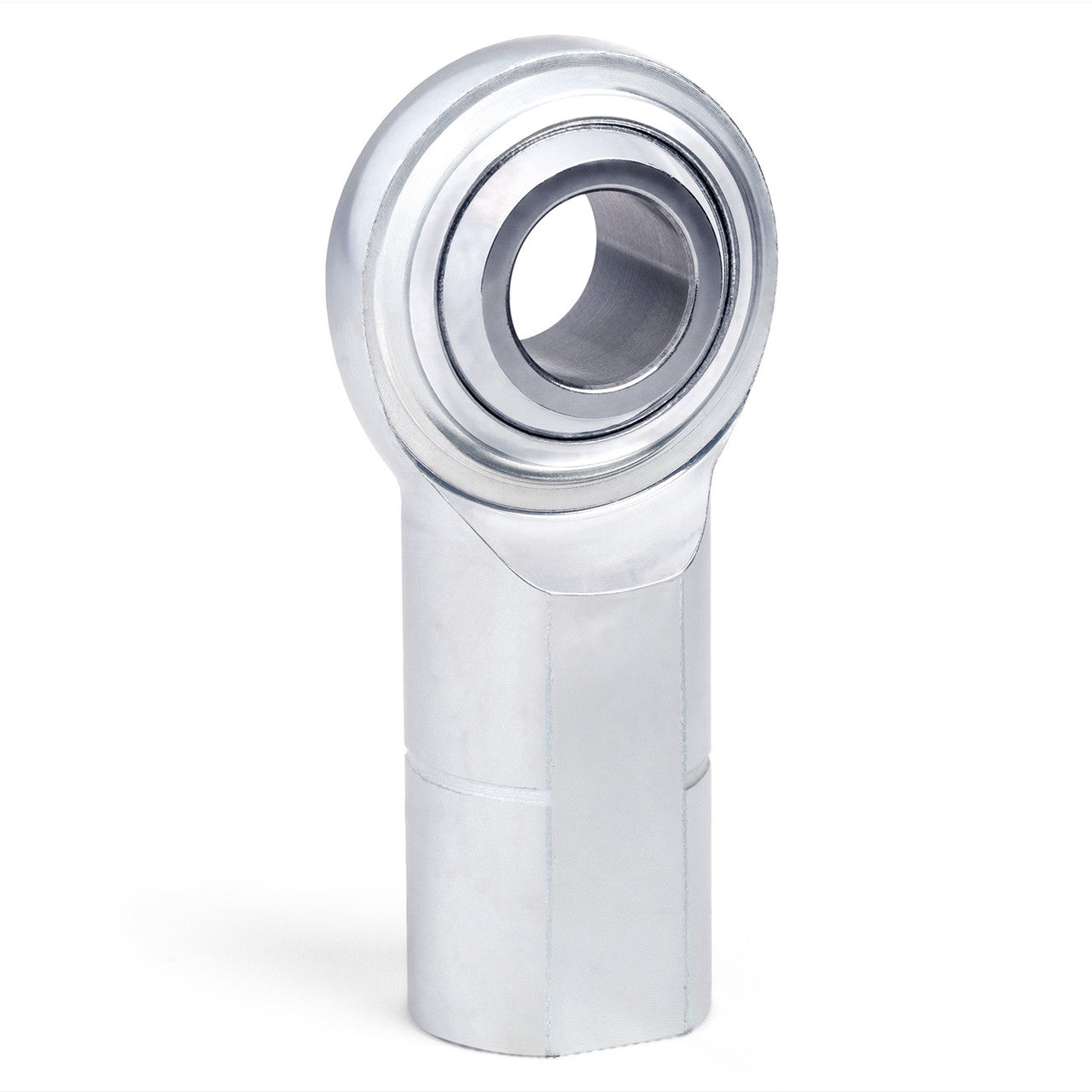

QA1 MCFR5 MC Series 2 Piece Carbon Rod End 5mm Bore M5X.08 RH Female Thread

QA1 MCFR5 MC Series 2 Piece Carbon Rod End 5mm Bore M5X.08 RH Female Thread

QA1’s MCF Series carbon steel metric female rod ends employ a traditional two-piece construction.  These commercial metal-to-metal rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. MCM series is an economical, commercial grade rod end that is generally appropriate for moderate applications. Stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• BODY: Carbon Steel, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: MC Series
• Style/Construction: 2 Piece Carbon
• Bore: 5mm
• Thread Direction: RH
• Thread Size and Pitch: M5X.08
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
