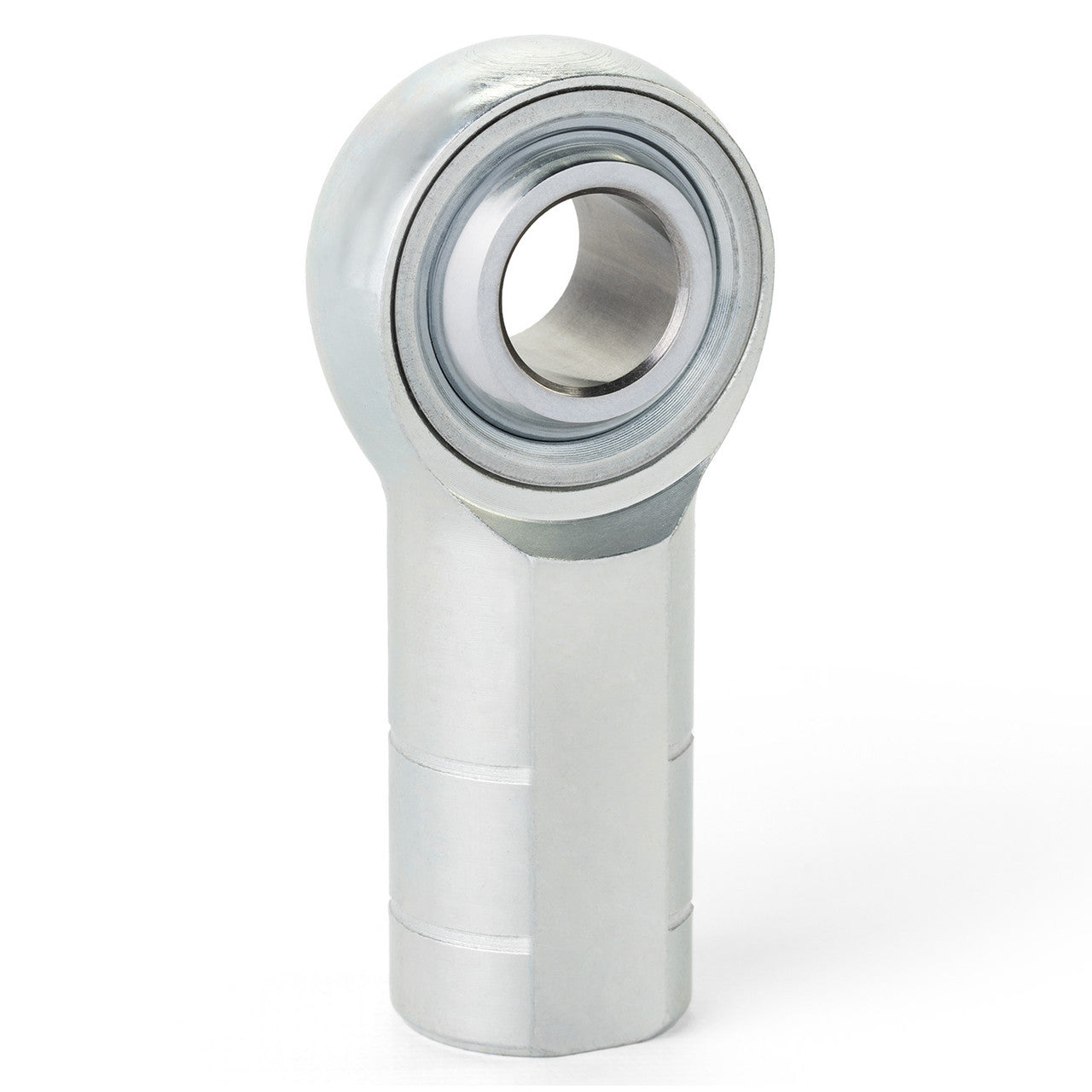

QA1 MHFL5 MH Series 3 Piece Alloy Rod End 5mm Bore M5X.08 LH Female Thread

QA1 MHFL5 MH Series 3 Piece Alloy Rod End 5mm Bore M5X.08 LH Female Thread

QA1's MHF Series alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. MHF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Grease fittings and stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Alloy/Chromoly Steel
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: MH Series
• Style/Construction: 3 Piece Alloy
• Bore: 5mm
• Thread Direction: LH
• Thread Size and Pitch: M5X.08
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
