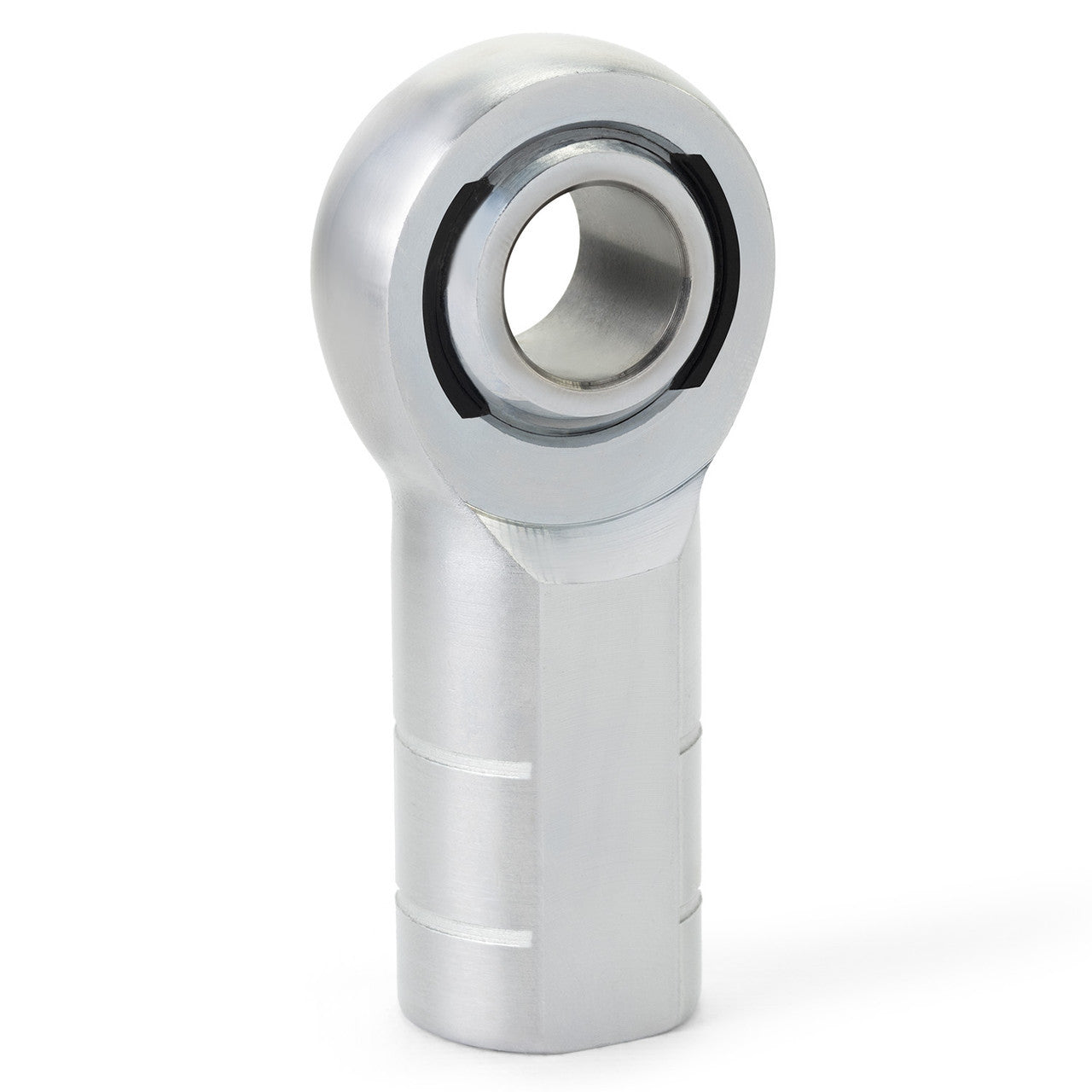

QA1 MXFL12 MX Series Alloy Loader Slot Rod End 12mm Bore M12X1.75 LH Female Thread PTFE Lined

QA1 MXFL12 MX Series Alloy Loader Slot Rod End 12mm Bore M12X1.75 LH Female Thread PTFE Lined

QA1’s MXF Series alloy/chromoly steel metric female rod ends include a unique loader slot design and deliver ultra-high strength and performance. MXF Series rod ends include a reinforced Nylon 12 injection molded race with self-lubricating PTFE that helps keep out dirt and debris. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads. MXF Series rod ends offer good overall value and provide the best performance for most applications. Available with right- or left-hand threads. Stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
• FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

• Rod End Series: MX Series
• Style/Construction: Alloy Loader Slot
• Bore: 12mm
• Thread Direction: LH
• Thread Size and Pitch: M12X1.75
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
