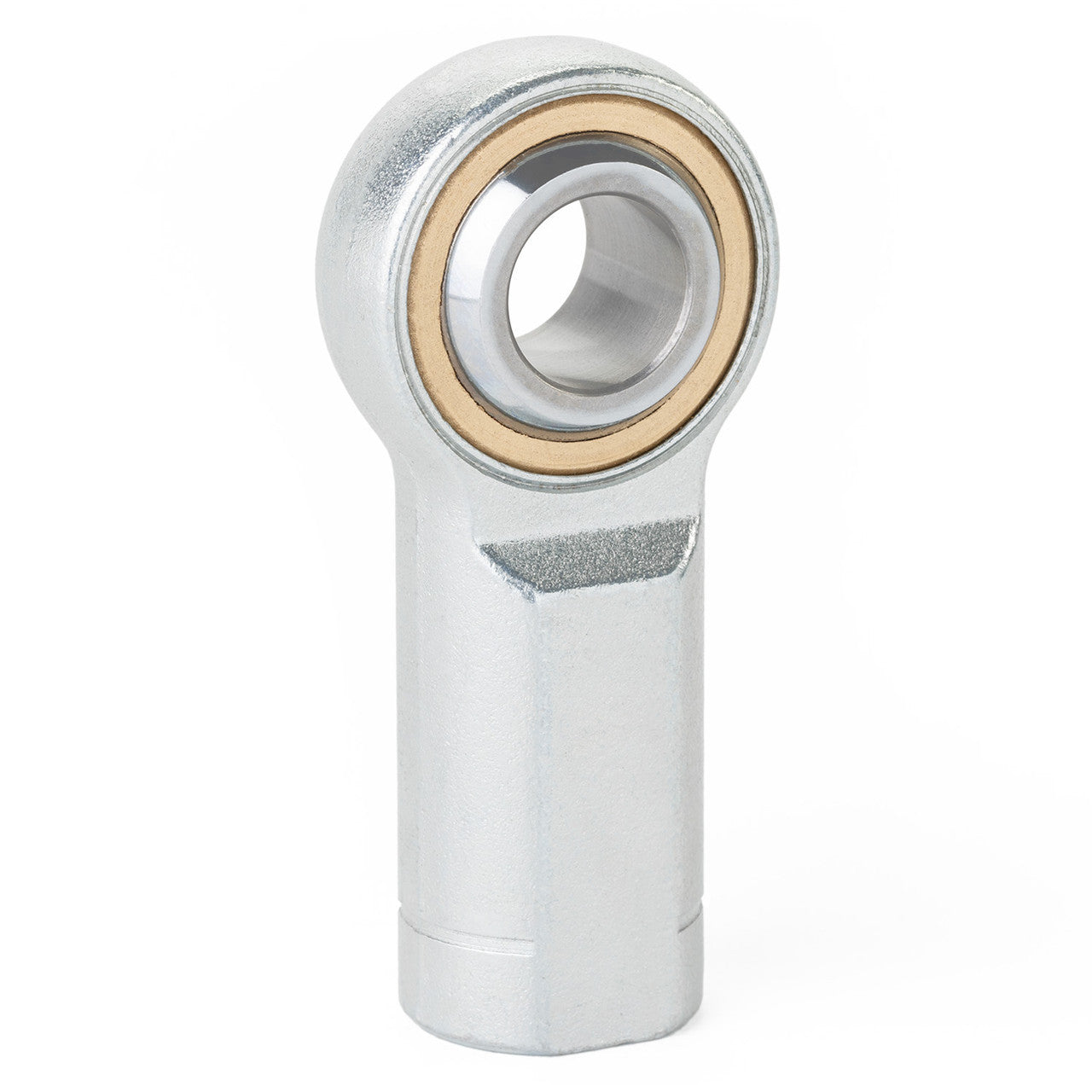

QA1 VFL12 V Series 3 Piece Bronze Race Rod End 3/4in. Bore 3/4in.-16 LH Female Thread

QA1 VFL12 V Series 3 Piece Bronze Race Rod End 3/4in. Bore 3/4in.-16 LH Female Thread

QA1's VF Series carbon steel female rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Sintered Bronze, Self-Lubricating Oil impregnated
• BODY: Carbon Steel, Protective Coating for Corrosion Resistance

Specifications

• Rod End Series: V Series
• Style/Construction: 3 Piece Bronze Race
• Bore: 0.7500in. or 3/4in.
• Thread Direction: LH
• Thread Size and Pitch: 3/4in.-16
• Male or Female Thread: Female
• PTFE Lined?: No
• Configuration: Standard
