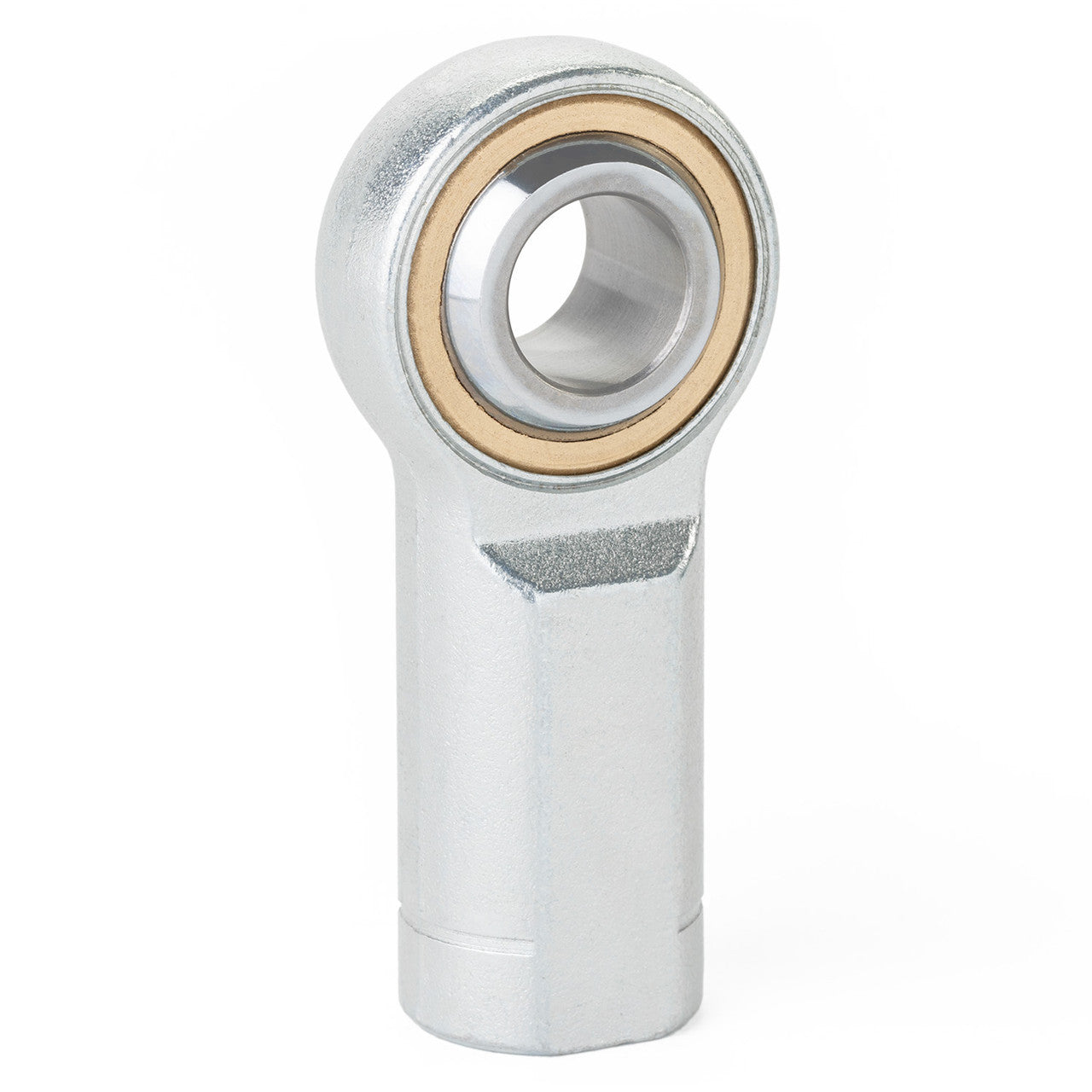

QA1 VFL3 V Series 3 Piece Bronze Race Rod End 3/16in. Bore 10-32 LH Female Thread

QA1's VF Series carbon steel female rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.

  • BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
  • RACE: Sintered Bronze, Self-Lubricating Oil impregnated
  • BODY: Carbon Steel, Protective Coating for Corrosion Resistance

Specifications

  • Rod End Series: V Series
  • Style/Construction: 3 Piece Bronze Race
  • Bore: 0.1875in. or 3/16in.
  • Thread Direction: LH
  • Thread Size and Pitch: 10-32
  • Male or Female Thread: Female
  • PTFE Lined?: No
  • Configuration: Standard
