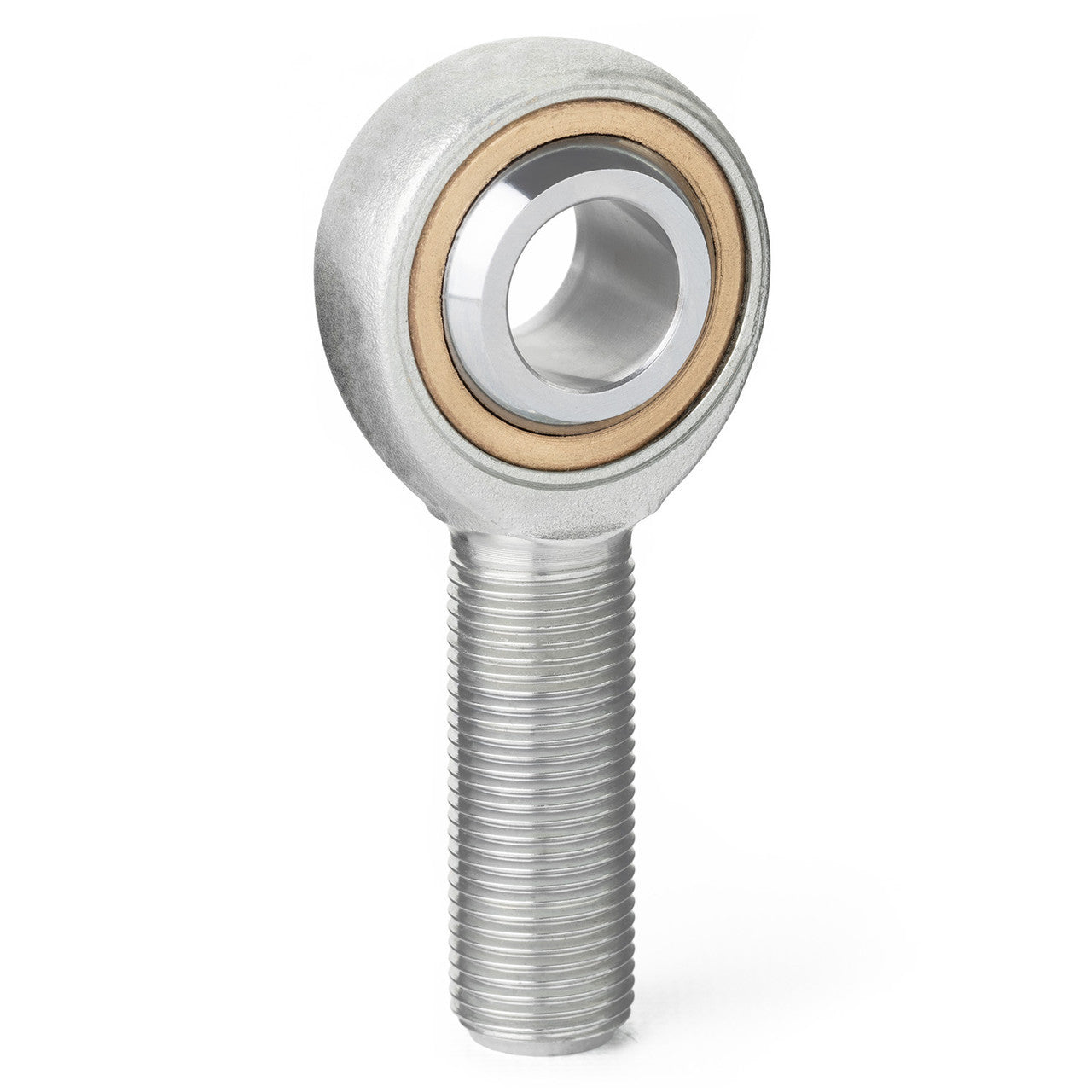

QA1 VML10 V Series 3 Piece Bronze Race Rod End 5/8in. Bore 5/8in.-18 LH Male Thread

QA1 VML10 V Series 3 Piece Bronze Race Rod End 5/8in. Bore 5/8in.-18 LH Male Thread

QA1's VM Series carbon steel male rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Sintered Bronze, Self-Lubricating Oil impregnated
• BODY: Carbon Steel, Protective Coating for Corrosion Resistance

Specifications

• Rod End Series: V Series
• Style/Construction: 3 Piece Bronze Race
• Bore: 0.6250in. or 5/8in.
• Thread Direction: LH
• Thread Size and Pitch: 5/8in.-18
• Male or Female Thread: Male
• PTFE Lined?: No
• Configuration: Standard
