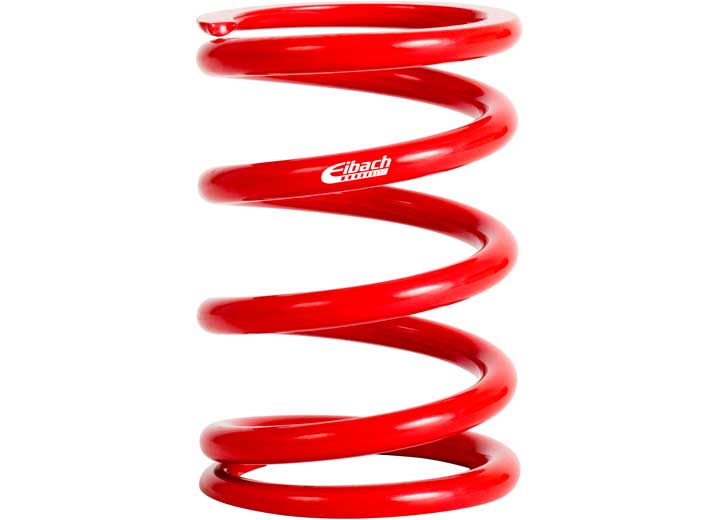

Eibach 0800.225.0175 ERS Linear Main Spring - Dia. in | Len: in | Rate: lbs/in

Features

Eibach's STANDARD Coilover Springs are designed to precise tolerances featuringEibach'slegendary consistency in rate, linearity and measurement. The original spring trusted by racers around the world.

• Eibach Coilover Springs Available in a Full Range of Rates and Sizes
• Maximum Travel in Combination with Smallest Block Heights
• Ultra-Lightweight for Reduced Unsprung Mass
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Coilover Spring (Red)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
8.00	2.25 I.D.	175	2.60	5.39	943.25	1.54
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
203.20	57.15 I.D.	3.12	66.00	137.00	4197.00	0.70
