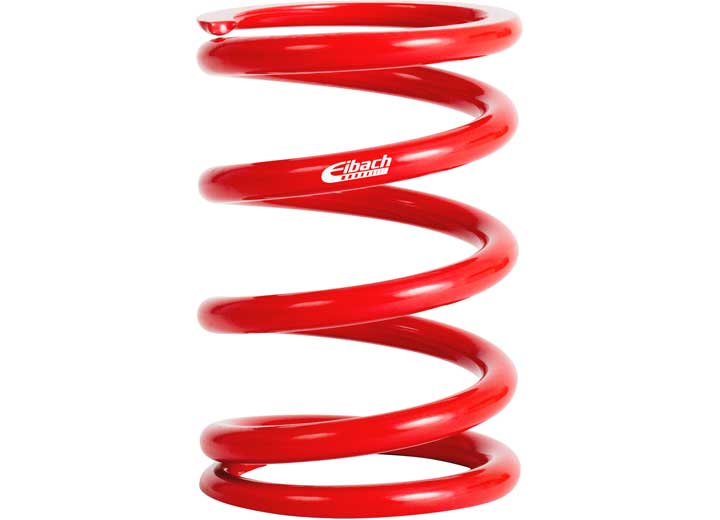

Eibach 0950.500.0750 Ess Speedway Front Spring - Dia. 5.00 in | Len: 9.50 in | Rate: 750 lbs/in

Features

Eibach CONVENTIONAL FRONT race springs are designed to precise tolerances featuring flat-ground and closed-end configurations, manufactured utilizingEibach'slegendary consistency in rate, linearity and measurement.

• Ultra Lightweight for Reduced Unsprung Mass
• Maximum Travel in Combination with Smallest Block Heights
• Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
• Precision Tolerances - The Tightest in the Industry
• Each Spring Individually Tested and Rated

Specifications

Conventional Front Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
9.50	5.00 O.D.	750	3.99	5.51	4128.00	6.83
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
241.00	127.00 O.D.	13.39	101.00	140.00	18362.00	3.10
