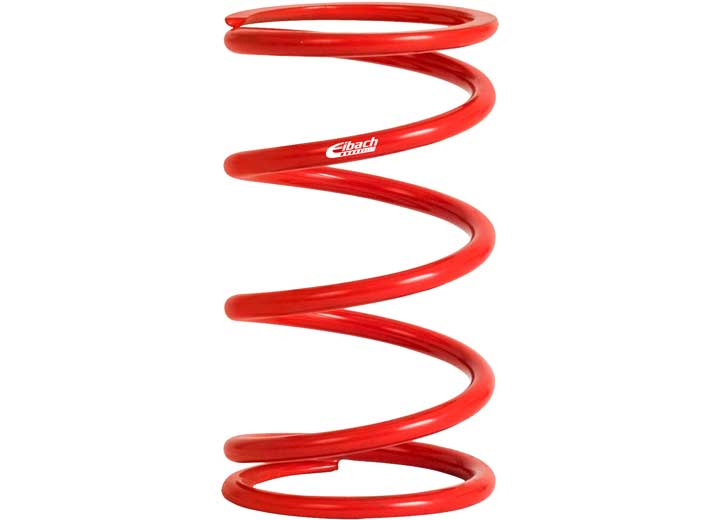

Eibach 100-60-0010 ERS Linear Tender Spring - Dia. 2.36 in | Len: 4.88 in | Rate: 57 lbs/in

Features

Eibach TENDER Springs feature flat-wire design for fine tuning of a multi-rate spring system found in race coilover configurations with minimal travel

• Provides a Softer Initial Rate When Paired with a Main Spring
• Available in Linear or Progressive Rates
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Specifications

Tender Spring (Linear)

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
4.88	2.36 I.D.	57	0.94	3.94	225.00	0.90
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
124.00	60.00 I.D.	1.02	24.00	100.00	1000.00	0.41
