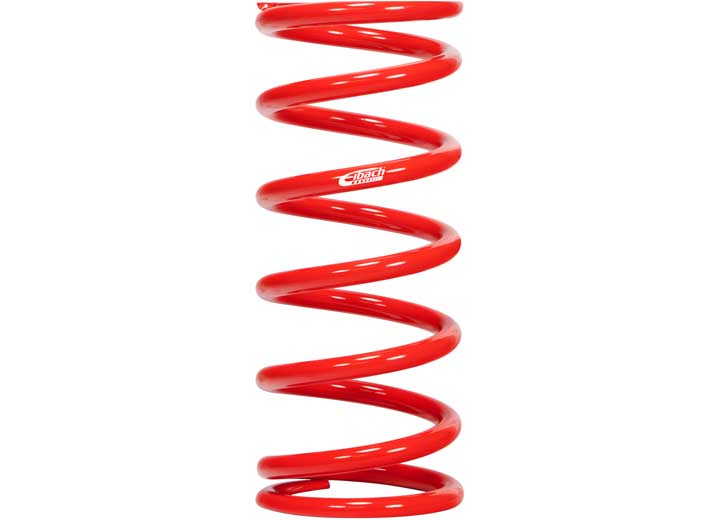

Eibach 1100.500.0400 Ess Speedway Rear Spring - Dia. 5.00 in | Len: 11.00 in | Rate: 400 lbs/in

Features

Eibach CONVENTIONAL REAR race springs are designed to precise tolerances featuring flat-ground end configurations and manufactured utilizingEibach'slegendary consistency in rate, linearity and measurement.

• Ultra Lightweight for Reduced Unsprung Mass
• Maximum Travel in Combination with Smallest Block Heights
• Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
• Precision Tolerances - The Tightest in the Industry
• Each Spring Individually Tested and Rated

Specifications

Conventional Rear Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
11.00	5.00 O.D.	400	3.83	7.17	2867.00	6.22
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
279.00	127.00 O.D.	7.14	97.00	182.00	12753.00	2.82
