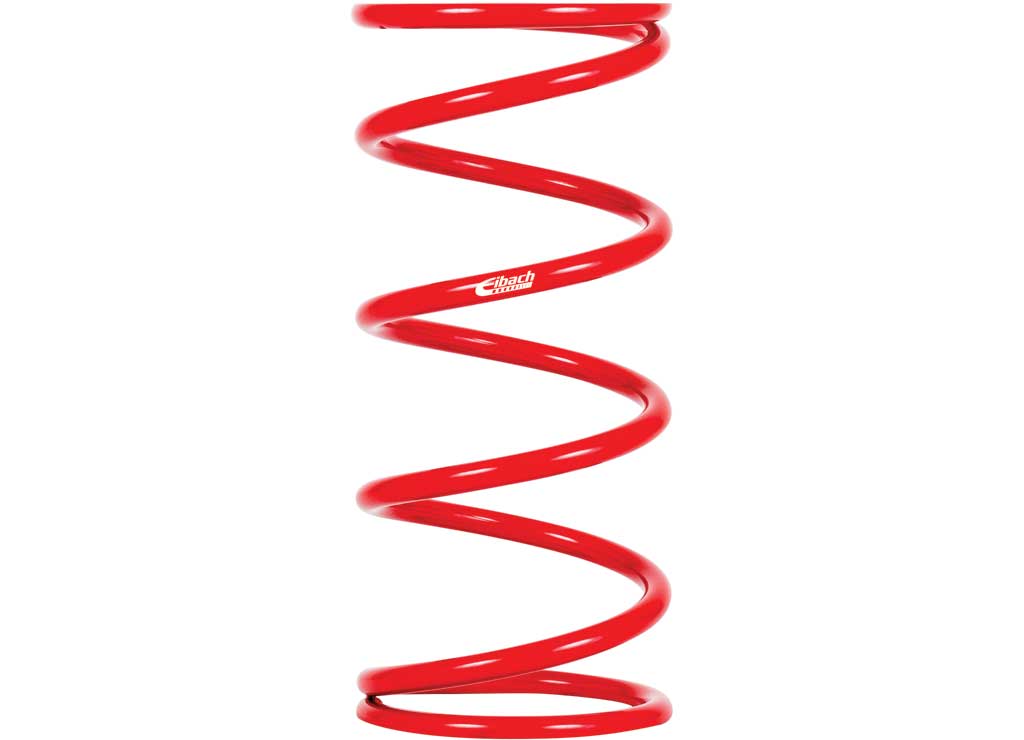

Eibach 1200.500.0275 ERS Linear Main Spring - Dia. in | Len: in | Rate: lbs/in

Features

Eibach's STANDARD Coilover Springs are designed to precise tolerances featuringEibach'slegendary consistency in rate, linearity and measurement. The original spring trusted by racers around the world.

• Ultra Lightweight for Reduced Unsprung Mass
• Maximum Travel in Combination with Smallest Block Heights
• Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
• Precision Tolerances - The Tightest in the Industry
• Each Spring Individually Tested and Rated

Specifications

Conventional Rear Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
12.00	5.00 O.D.	275	3.47	8.50	2344.99	5.80
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
304.80	127.00 O.D.	4.91	88.20	216.00	10431.00	2.63
