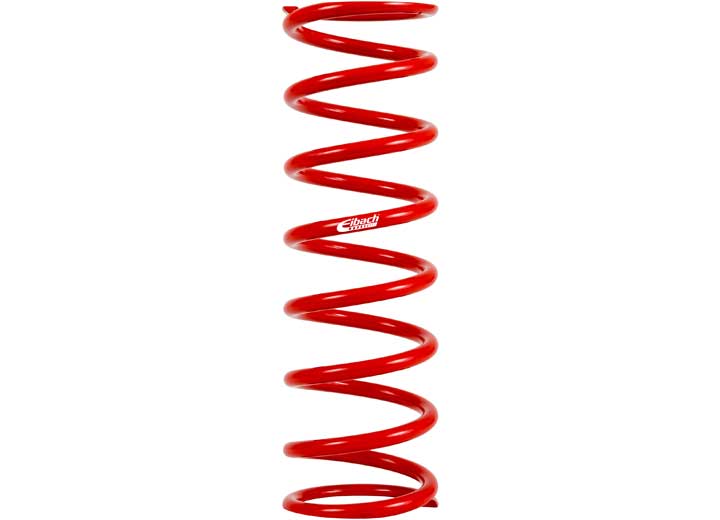

Eibach 1500.500.0150 Ess Speedway Rear Spring - Dia. 5.00 in | Len: 15.00 in | Rate: 150 lbs/in

Features

Eibach CONVENTIONAL REAR race springs are designed to precise tolerances featuring flat-ground end configurations and manufactured utilizingEibach'slegendary consistency in rate, linearity and measurement.

• Ultra Lightweight for Reduced Unsprung Mass
• Maximum Travel in Combination with Smallest Block Heights
• Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
• Precision Tolerances - The Tightest in the Industry
• Each Spring Individually Tested and Rated

Specifications

Conventional Rear Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
15.00	5.00 O.D.	150	3.86	11.14	1670.00	5.58
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
381.00	127.00 O.D.	2.68	98.00	283.00	7428.00	2.53
