Eibach EBS770015 Elastomeric Bump Stop - Dia. 0.71 in | Len: 1.57 in | Rate: 1887 lbs/in

Features

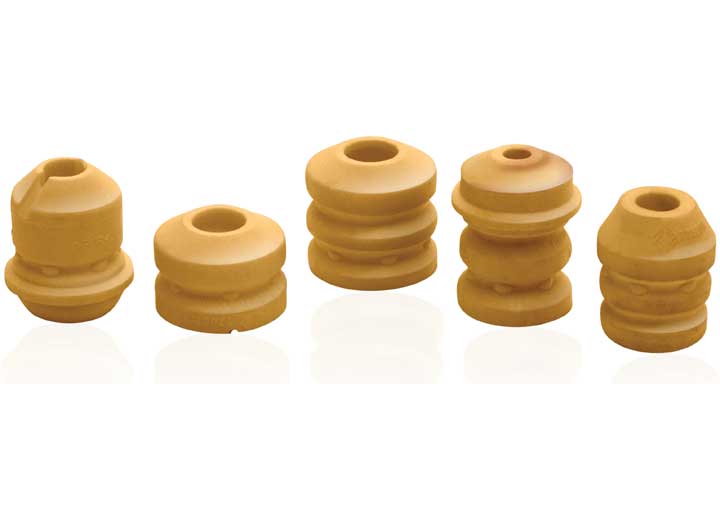

Eibach's Elastomer BUMP STOPS progressively control the suspension as it engages, delivering significant compression characteristic throughout its range of travel.

• Made from Race-Proven Micro-Cellular Polyurethane Elsatomer
• Secondary Spring Tuning
• Tremendous Deflection Potential with Near-Zero Lateral Expansion
• Progressive Compression Characteristics
• Extensive Range of Rates and Dimensions for Maximum Tuning Flexibility

Specifications

Bump Stop

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
1.57	0.71 I.D.	1887	N/A	N/A	N/A	N/A
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
40.00	18.00 I.D.	33.76	N/A	N/A	N/A	N/A
