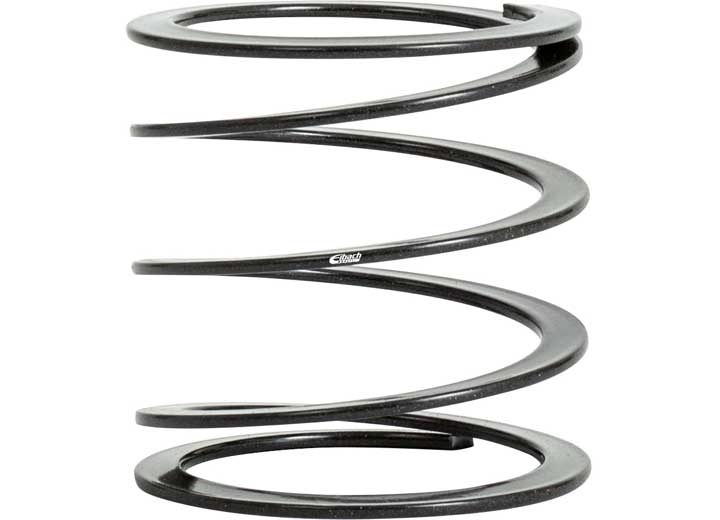

Eibach HELPER188 ERS Helper Spring - Dia. 1.88 in | Len: 2.98 in | Rate: 12 lbs/in

Features

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.

• Keeps Main Spring Seated When Suspension is Unloaded
• Available for Most Popular Spring Diameters
• Each Spring Individually Tested
• Flat Spring Wire for Maximum Travel and Minimum Block Height

Specifications

Helper Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
2.98	1.88 I.D.	12	0.72	2.26	29.00	0.35
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
76.00	48.00 I.D.	0.21	18.00	57.00	130.00	0.14
