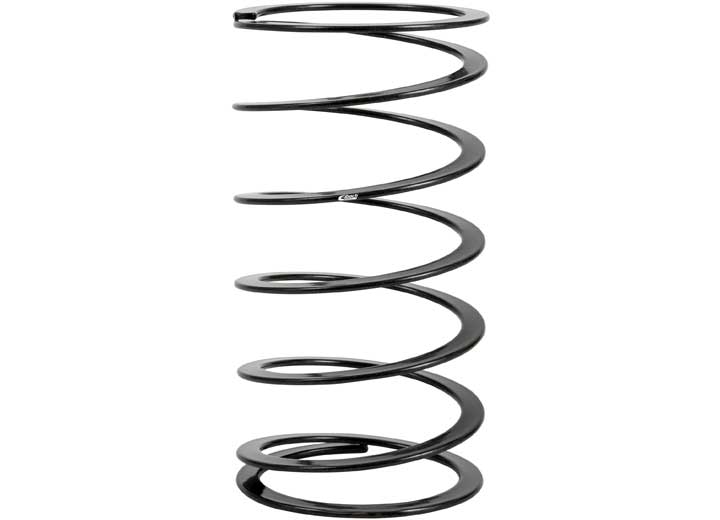

Eibach HELPER225T ERS Helper Spring - Dia. 2.25 in | Len: 5.91 in | Rate: 9 lbs/in

Features

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.

• Keeps Main Spring Seated When Suspension is Unloaded
• Available for Most Popular Spring Diameters
• Each Spring Individually Tested
• Flat Spring Wire for Maximum Travel and Minimum Block Height

Specifications

Helper Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
5.91	2.25 I.D.	9	0.56	5.35	46.00	0.33
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
150.00	57.00 I.D.	0.21	14.00	136.00	204.00	0.15
