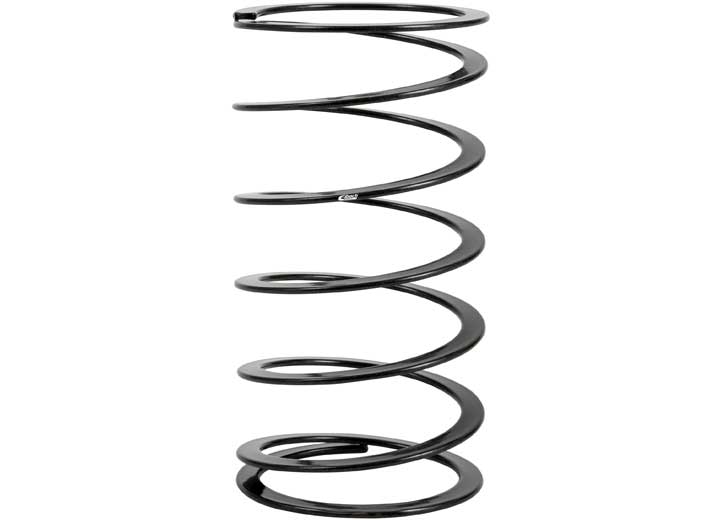

Eibach HELPER300T ERS Helper Spring - Dia. 3.00 in | Len: 4.84 in | Rate: 23 lbs/in

Features

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.

• Keeps Main Spring Seated When Suspension is Unloaded
• Available for Most Popular Spring Diameters
• Each Spring Individually Tested
• Flat Spring Wire for Maximum Travel and Minimum Block Height

Specifications

Helper Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
4.84	3.00 I.D.	23	1.02	3.82	91.00	0.88
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
123.00	76.00 I.D.	0.41	26.00	97.00	405.00	0.40
