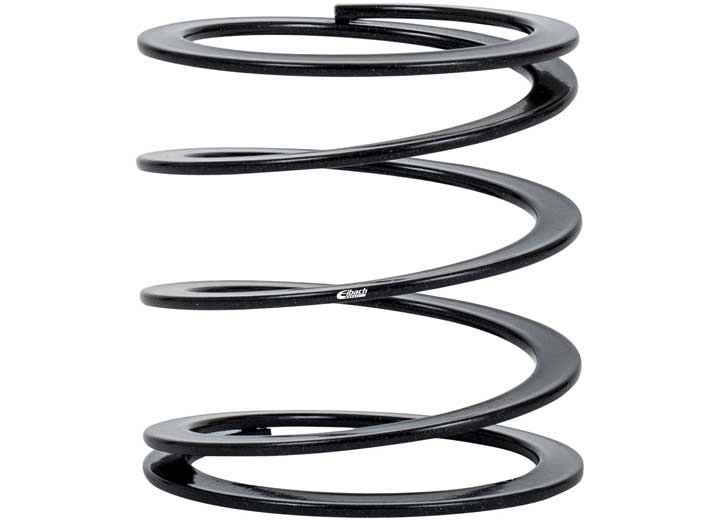

Eibach HELPER375 ERS Helper Spring - Dia. 3.75 in | Len: 6.07 in | Rate: 45 lbs/in

Features

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.

• Keeps Main Spring Seated When Suspension is Unloaded
• Available for Most Popular Spring Diameters
• Each Spring Individually Tested
• Flat Spring Wire for Maximum Travel and Minimum Block Height

Specifications

Helper Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
6.07	3.75 I.D.	45	1.38	4.69	253.00	1.90
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
154.00	95.00 I.D.	0.8	35.00	119.00	1126.00	0.86
