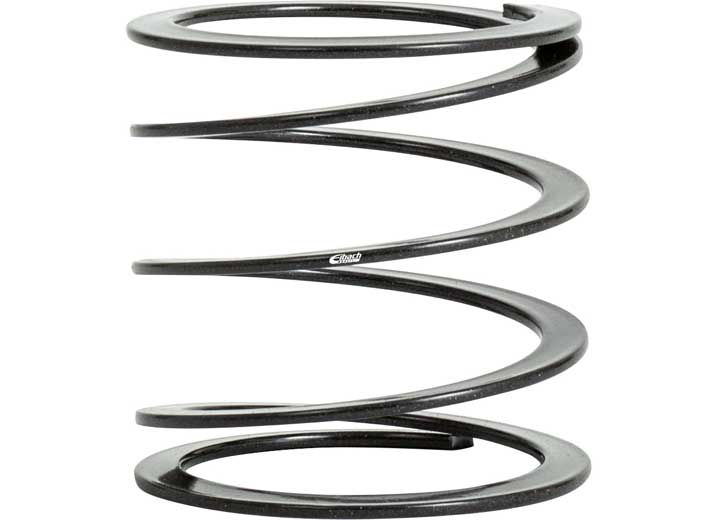

Eibach HELPER70 ERS Helper Spring - Dia. 2.75 in | Len: 3.94 in | Rate: 17 lbs/in

Features

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.

• Keeps Main Spring Seated When Suspension is Unloaded
• Available for Most Popular Spring Diameters
• Each Spring Individually Tested
• Flat Spring Wire for Maximum Travel and Minimum Block Height

Specifications

Helper Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
3.94	2.75 I.D.	17	0.78	3.16	54.00	0.57
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
100.00	70.00 I.D.	0.3	20.00	80.00	241.00	0.26
