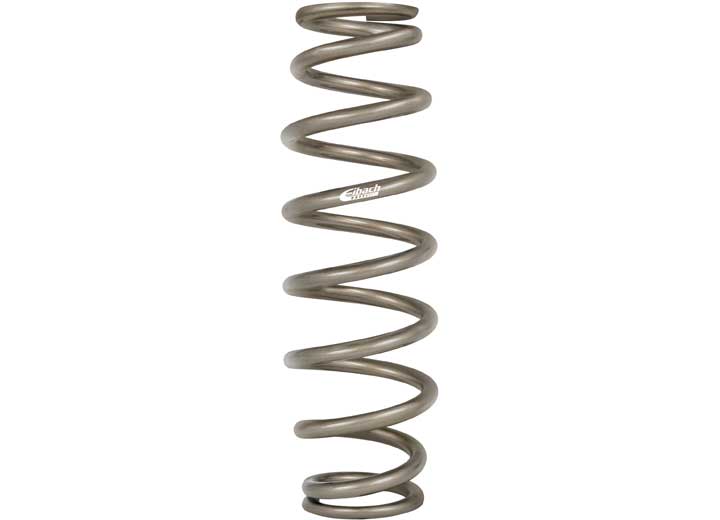

Eibach P1400.2530.0150 Barrel Main Spring - Dia. 2.50 in | Len: 14.00 in | Rate: 150 lbs/in

Features

Eibach XT Barrel (Extreme Travel) coilover springs utilizeEibach'ssuper-high tensile wire to provide racers with maximum travel combined with ultra-light physical weights delivering industry-leading performance.

• Redesigned Barrel Spring shape with increased suspension travel and linearity - will replace the XT Barrel counterparts
• Hi-Tensil Platinum Spring Coil Used
• Ultra-Lightweight for Reduced Unsprung Mass
• Each Spring Individually Tested
• Maximum Travel in Combination with Smallest Block Heights

Specifications

Platinum Barrel Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
14.00	2.50 I.D.	150	3.35	10.67	1595.00	3.75
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
356.00	64.00 I.D.	2.68	85.00	271.00	7096.00	1.70
