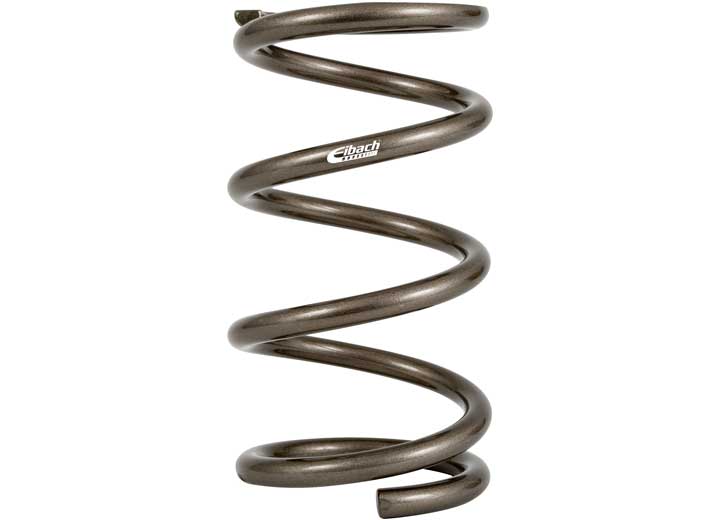

Eibach PF0950.500.0500 Platinum Front Short Track - Dia. 5.00 in | Len: 9.50 in | Rate: 500 lbs/in

Features

Eibach PLATINUM SERIES race springs are engineered usingEibach'sproprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.

• Designed Specifically for the Dirt Modified Racer UsingEibach'sProprietary Ultra-High Tensile Alloy
• More Travel - Increased Travel Reduces Shear Loads and Stores More Energy Which Equals Increased Grip In and Off the Corner
• Ultra-Lightweight for Increased Vehicle Response and More Usable Power to the Ground
• Each Platinum Spring is Wound to Exact Tolerances and Dyno Tested with Graph Results Included
• Made By Eibach in the U.S.A.

Specifications

Platinum Front Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
9.50	5.00 O.D.	500	3.15	6.38	3180.00	4.87
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
241.00	127.00 O.D.	8.94	80.00	162.00	14144.00	2.21
