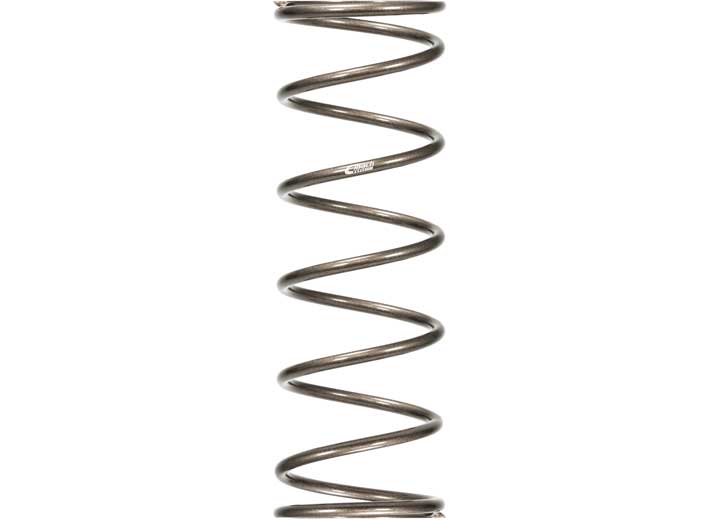

Eibach PR1600.500.0050 Platinum Rear - Dia. 5.00 in | Len: 16.00 in | Rate: 50 lbs/in

Features

Eibach PLATINUM series race springs are engineered usingEibach'sproprietary ultra-high tensile strength steel, for the lowest physical weights and maximum spring travel.

• Ultra Light-Weight Using High Tensile Steel
• More Travel / Deflection than Standard Racing Coil Springs
• Block Resistant - No Loss in Spring Height!
• Flat-Ground End Configuration with Parallel Tolerance to +/-1 Degree
• The Eibach ER Platinum Springs will Maintain Their Dimensions and Rates to Incredibly Tight Tolerances, Lap after Lap, Race after Race

Specifications

Platinum Rear Spring

Length (in)	Diameter (in)	Rate (lbs/in)	Block Height (in)	Travel (in)	Block Load (lbs)	Weight (lbs)
16.00	5.00 O.D.	50	2.77	13.23	662.00	3.09
Length (mm)	Diameter (mm)	Rate (kg/mm)	Block Height (mm)	Travel (mm)	Block Load (N)	Weight (kg)
406.00	127.00 O.D.	0.89	70.00	336.00	2944.00	1.40
