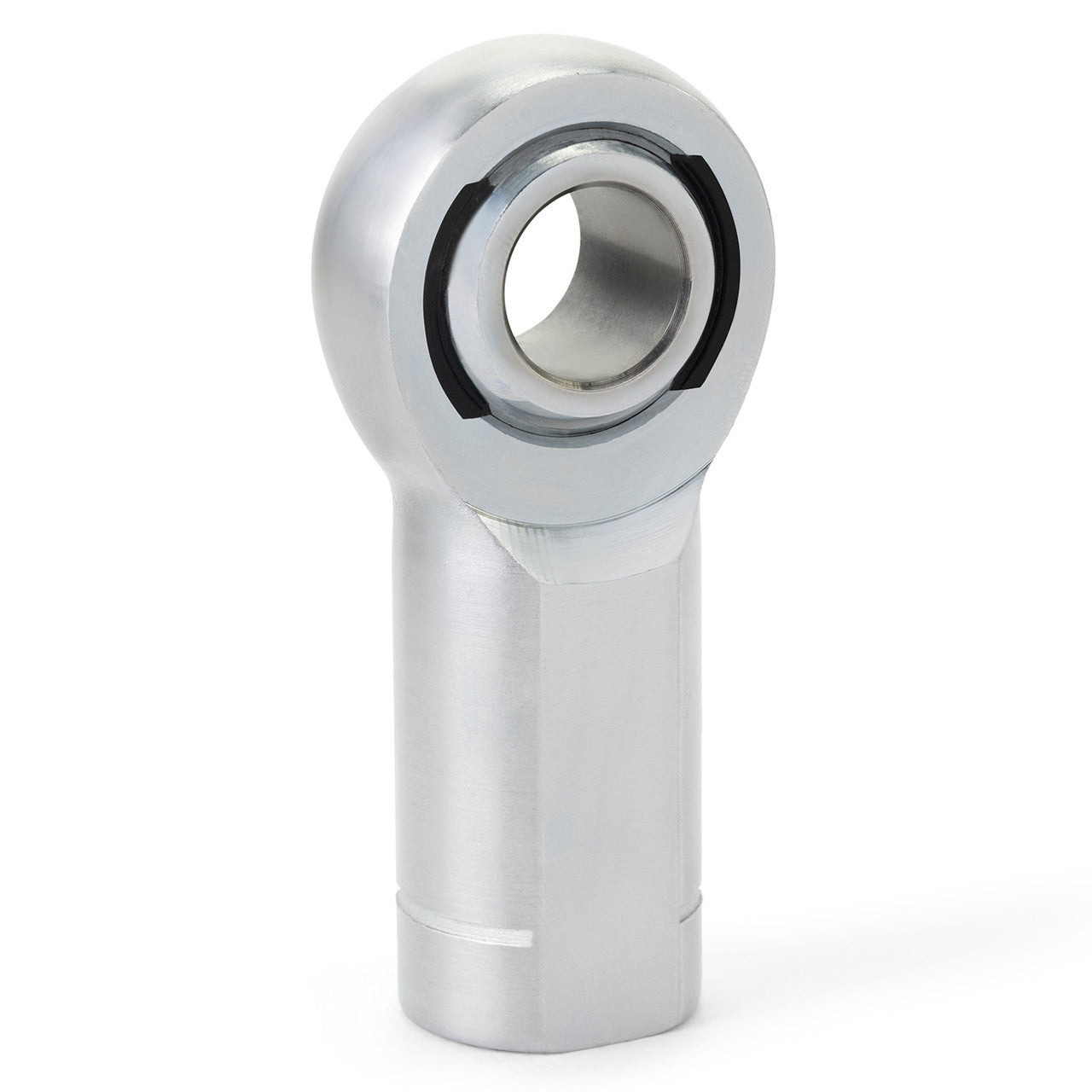

QA1 EXFL6 EX Series Carbon Loader Slot Rod End 3/8in. Bore 3/8in.-24 LH Female Thread PTFE Lined

QA1 EXFL6 EX Series Carbon Loader Slot Rod End 3/8in. Bore 3/8in.-24 LH Female Thread PTFE Lined

QA1’s EXF Series high-strength carbon steel female rod ends include a unique loader slot design and have increased cross-sectional thickness. As an economical alternative to alloy/chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. The reinforced Nylon injection molded race with self-lubricating PTFE won't pound out like other styles and helps keep dirt and debris out for excellent performance. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads, making it an excellent solution for a broad range of applications. When even more strength is needed, consider QA1 X Series rod ends. Available with right- or left-hand threads. Stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Self-Lubricating Reinforced Nylon 12 with PTFE
• BODY: Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance
• FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

• Rod End Series: EX Series
• Style/Construction: Carbon Loader Slot
• Bore: 0.3750in. or 3/8in.
• Thread Direction: LH
• Thread Size and Pitch: 3/8in.-24
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
