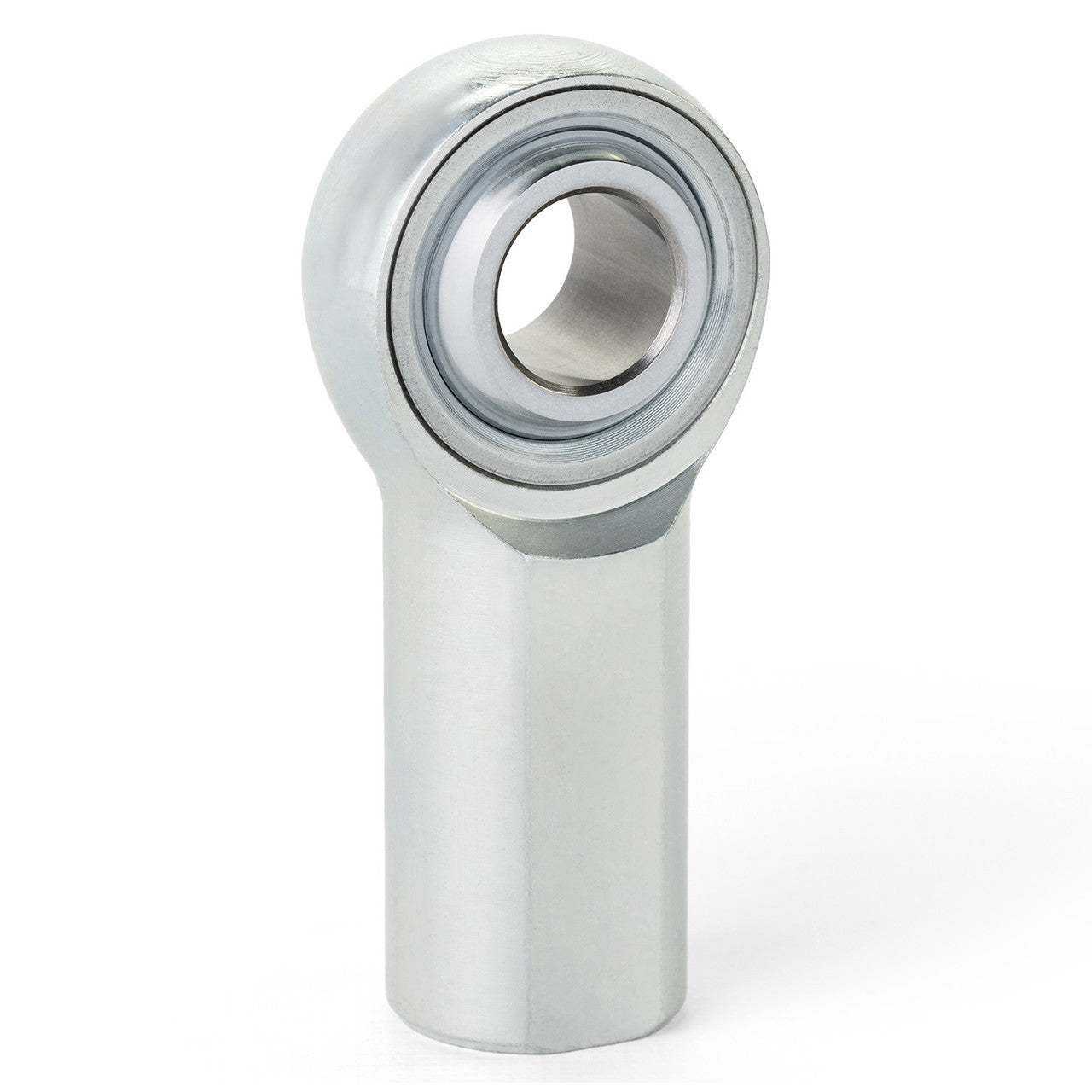

QA1 HFR10T H Series 3 Piece Alloy Rod End 5/8in. Bore 5/8in.-18 RH Female Thread PTFE Lined

QA1 HFR10T H Series 3 Piece Alloy Rod End 5/8in. Bore 5/8in.-18 RH Female Thread PTFE Lined

QA1's HF-T Series alloy/chromoly female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Stainless Steel
• LINER: Self-Lubricating PTFE
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: H Series
• Style/Construction: 3 Piece Alloy
• Bore: 0.6250in. or 5/8in.
• Thread Direction: RH
• Thread Size and Pitch: 5/8in.-18
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
