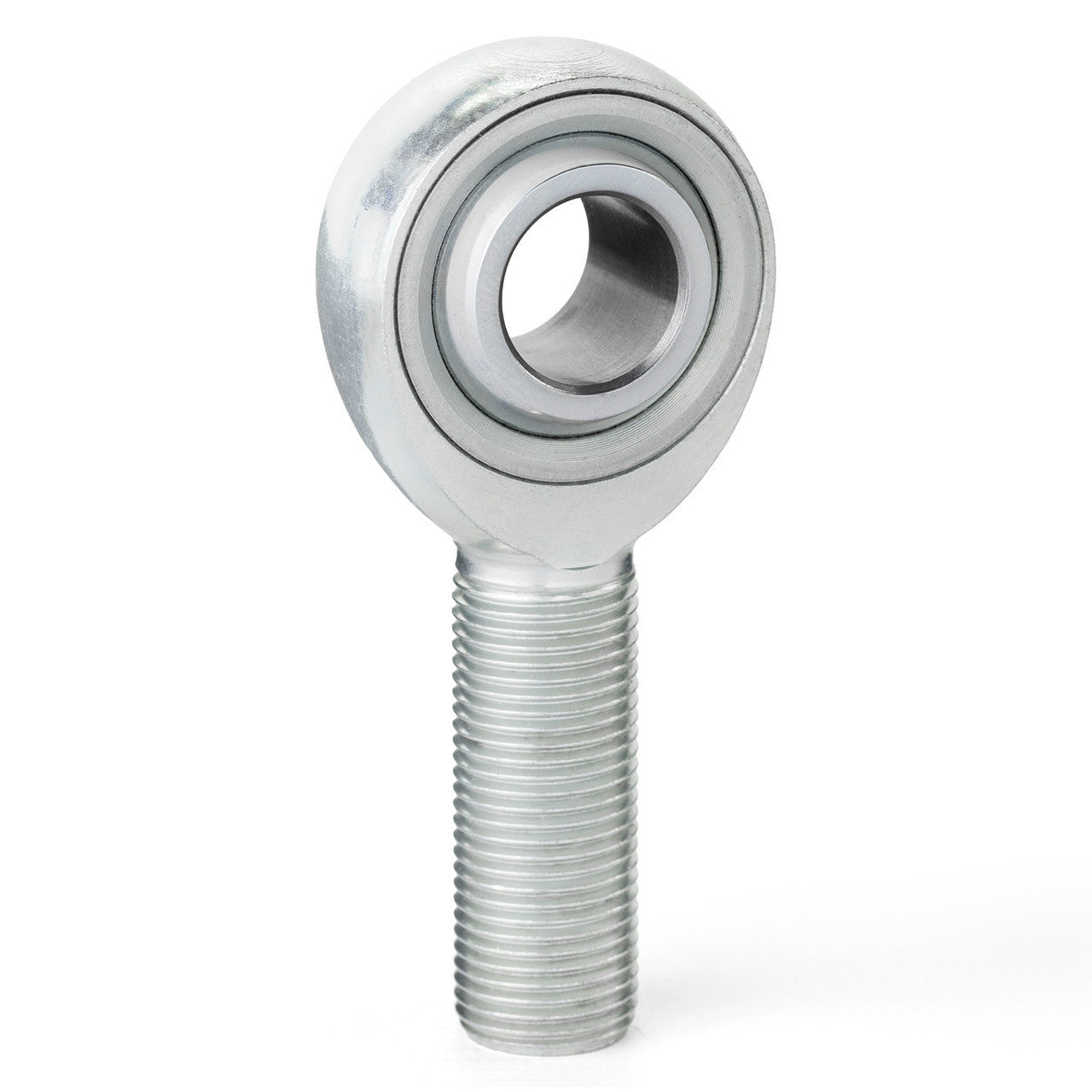

QA1 HML10-12 H Series 3 Piece Alloy Rod End 5/8in. Bore 3/4in.-16 LH Male Thread

QA1 HML10-12 H Series 3 Piece Alloy Rod End 5/8in. Bore 3/4in.-16 LH Male Thread

QA1's HM Series alloy/chromoly male rod ends are constructed using a traditional three-piece design. HM Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These rod ends are heat treated and are available in right- or left-hand threads. Grease fittings and stud configurations are also available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Alloy/Chromoly Steel
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: H Series
• Style/Construction: 3 Piece Alloy
• Bore: 0.6250in. or 5/8in.
• Thread Direction: LH
• Thread Size and Pitch: 3/4in.-16
• Male or Female Thread: Male
• PTFE Lined?: No
• Configuration: Standard
