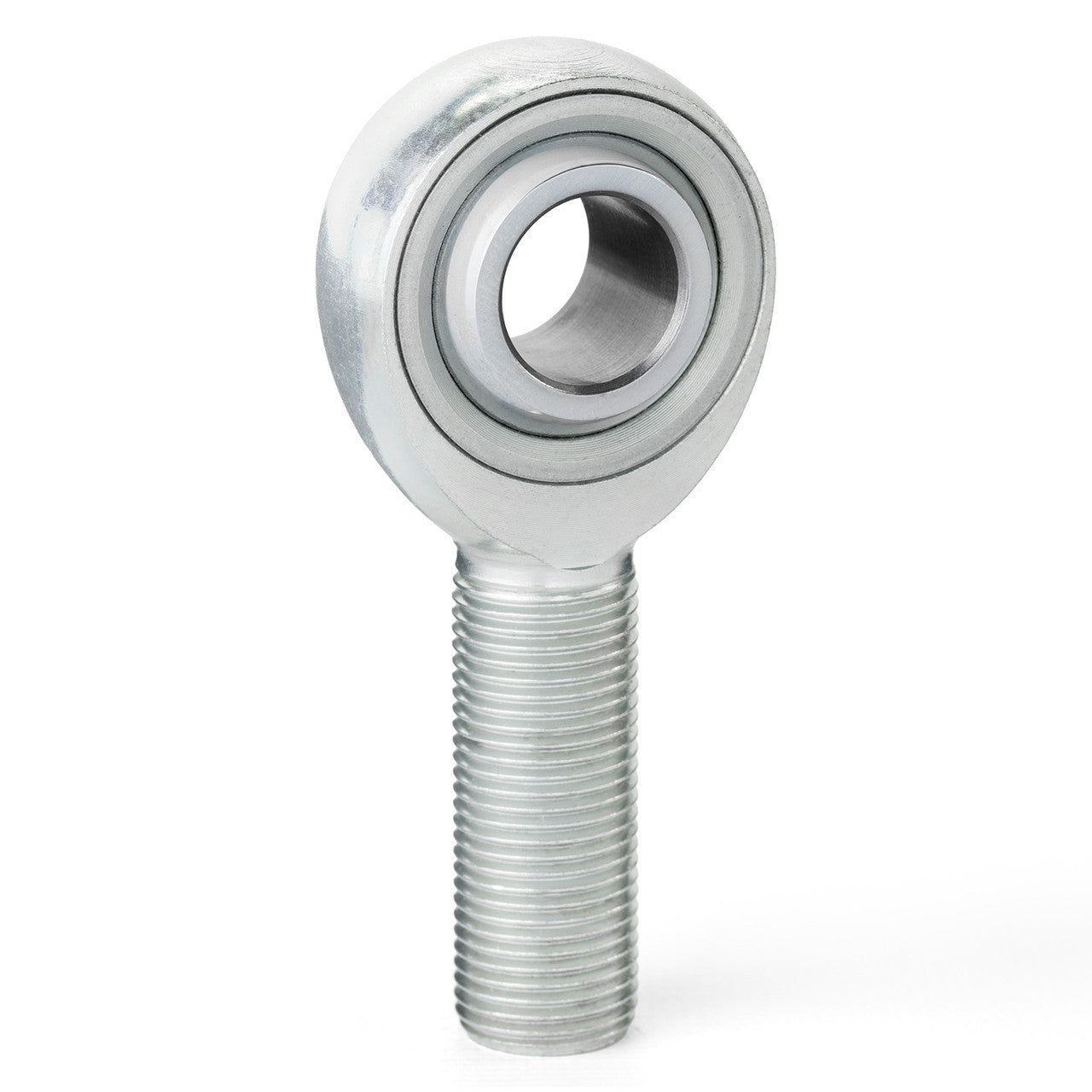

QA1 KML10-12 K Series 3 Piece Carbon Rod End 5/8in. Bore 3/4in.-16 LH Male Thread

QA1 KML10-12 K Series 3 Piece Carbon Rod End 5/8in. Bore 3/4in.-16 LH Male Thread

QA1’s KM Series carbon steel male rod ends are constructed using a traditional three-piece design. KM Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Grease fittings and stud configurations are available. Also available in large bore sizes.

• BALL: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
• RACE: Alloy Steel, Heat Treated
• BODY: Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: K Series
• Style/Construction: 3 Piece Carbon
• Bore: 0.6250in. or 5/8in.
• Thread Direction: LH
• Thread Size and Pitch: 3/4in.-16
• Male or Female Thread: Male
• PTFE Lined?: No
• Configuration: Standard
