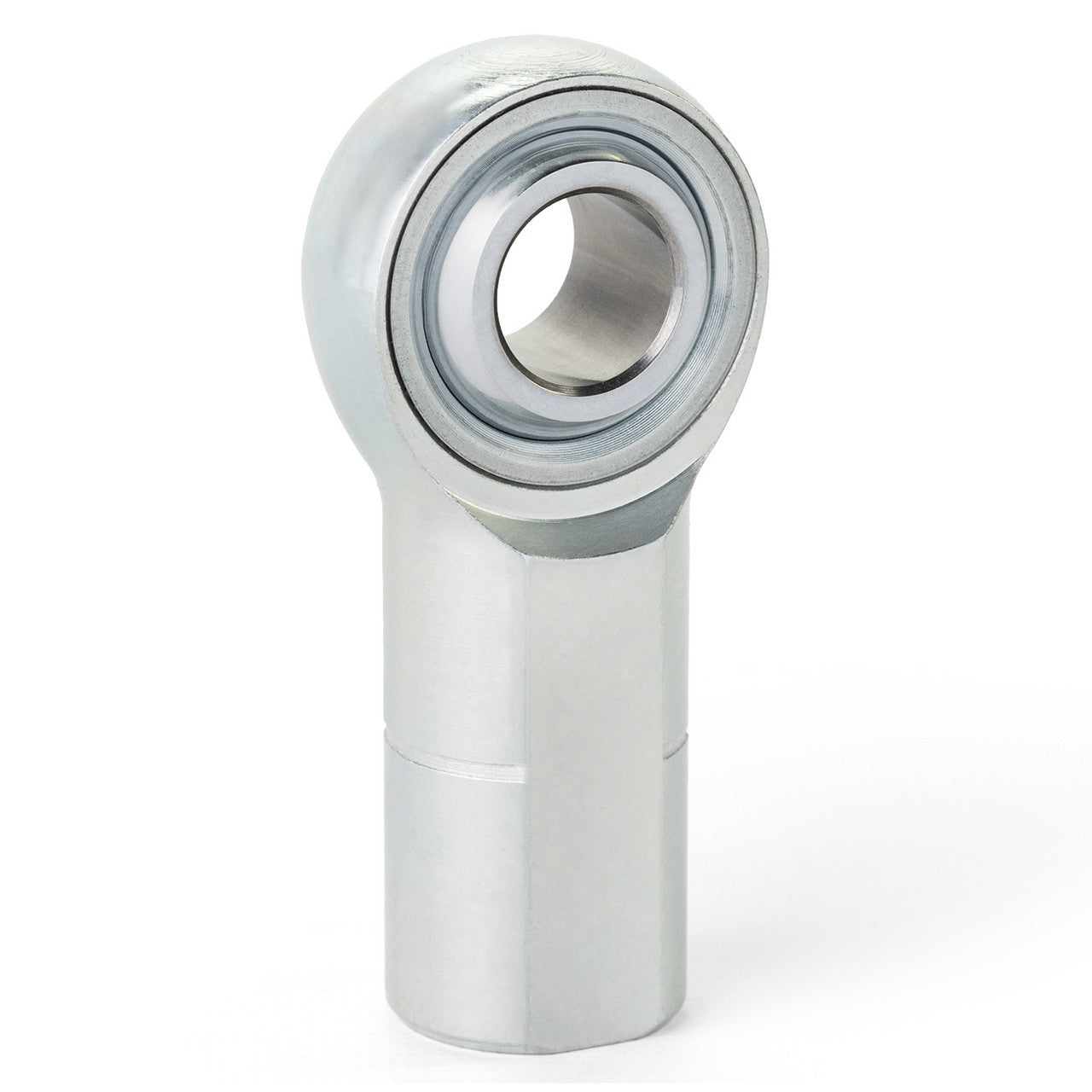

QA1 MHFR20T MH Series 3 Piece Alloy Rod End 20mm Bore M20X1.5 RH Female Thread PTFE Lined

QA1 MHFR20T MH Series 3 Piece Alloy Rod End 20mm Bore M20X1.5 RH Female Thread PTFE Lined

QA1’s MHF-T Series alloy/chromoly steel metric male rod ends are a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are ideal for a variety of applications and are available in right- or left-hand threads. Stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Stainless Steel, Heat Treated
• LINER: Self-Lubricating PTFE
• BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.

Specifications

• Rod End Series: MH Series
• Style/Construction: 3 Piece Alloy
• Bore: 20mm
• Thread Direction: RH
• Thread Size and Pitch: M20X1.5
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
