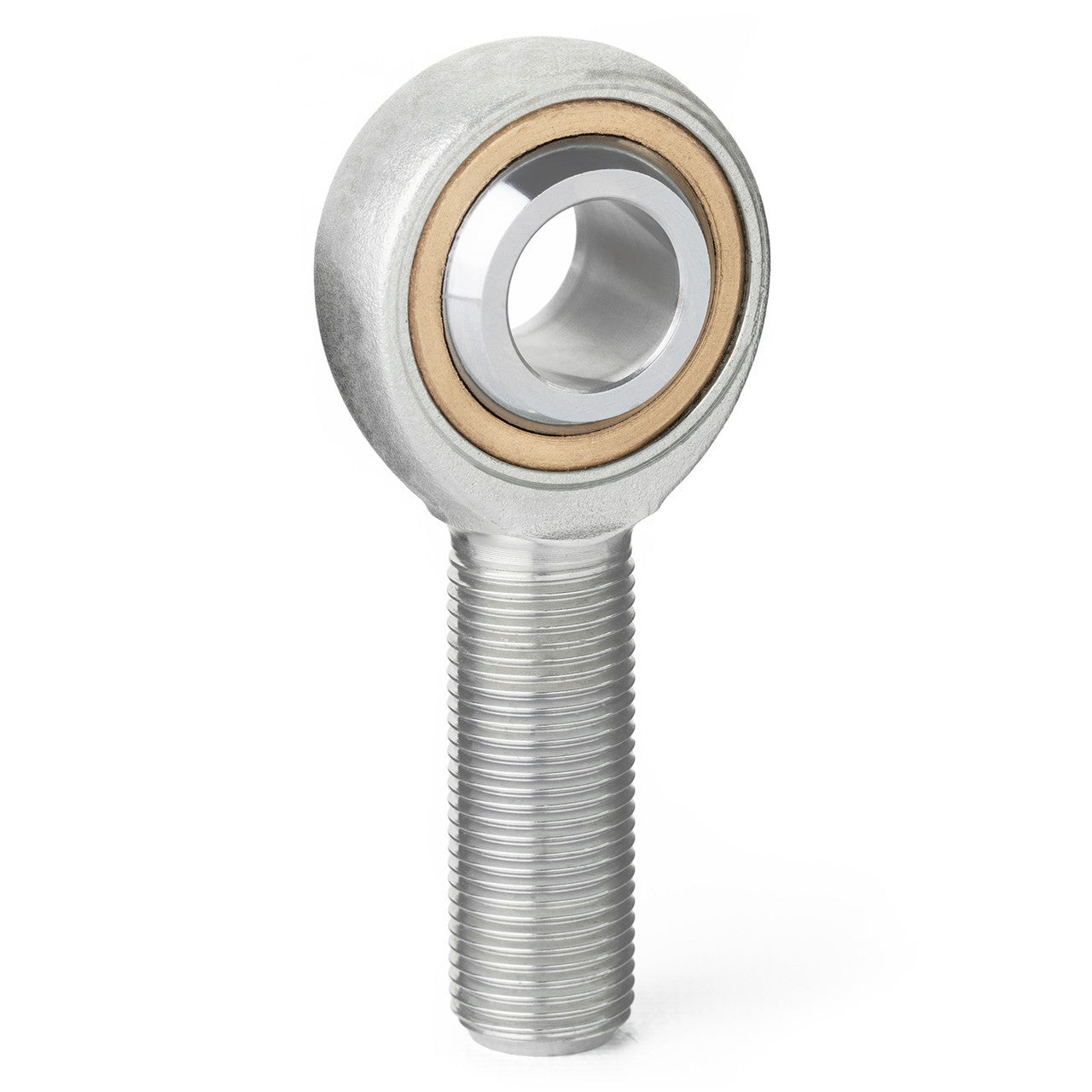

QA1 MVMR5 MV Series 3 Piece Bronze Race Rod End 5mm Bore M5X.08 RH Male Thread

QA1 MVMR5 MV Series 3 Piece Bronze Race Rod End 5mm Bore M5X.08 RH Male Thread

QA1's MVM Series carbon steel metric male rod ends with bronze race are generally appropriate for low load, high oscillation applications. These commercial rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. Flush mount grease fitting is included. Stud configurations are available.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• RACE: Sintered Bronze, Oil impregnated
• BODY: Carbon Steel, Protective Coated for Corrosion Resistance

Specifications

• Rod End Series: MV Series
• Style/Construction: 3 Piece Bronze Race
• Bore: 5mm
• Thread Direction: RH
• Thread Size and Pitch: M5X.08
• Male or Female Thread: Male
• PTFE Lined?: No
• Configuration: Standard
