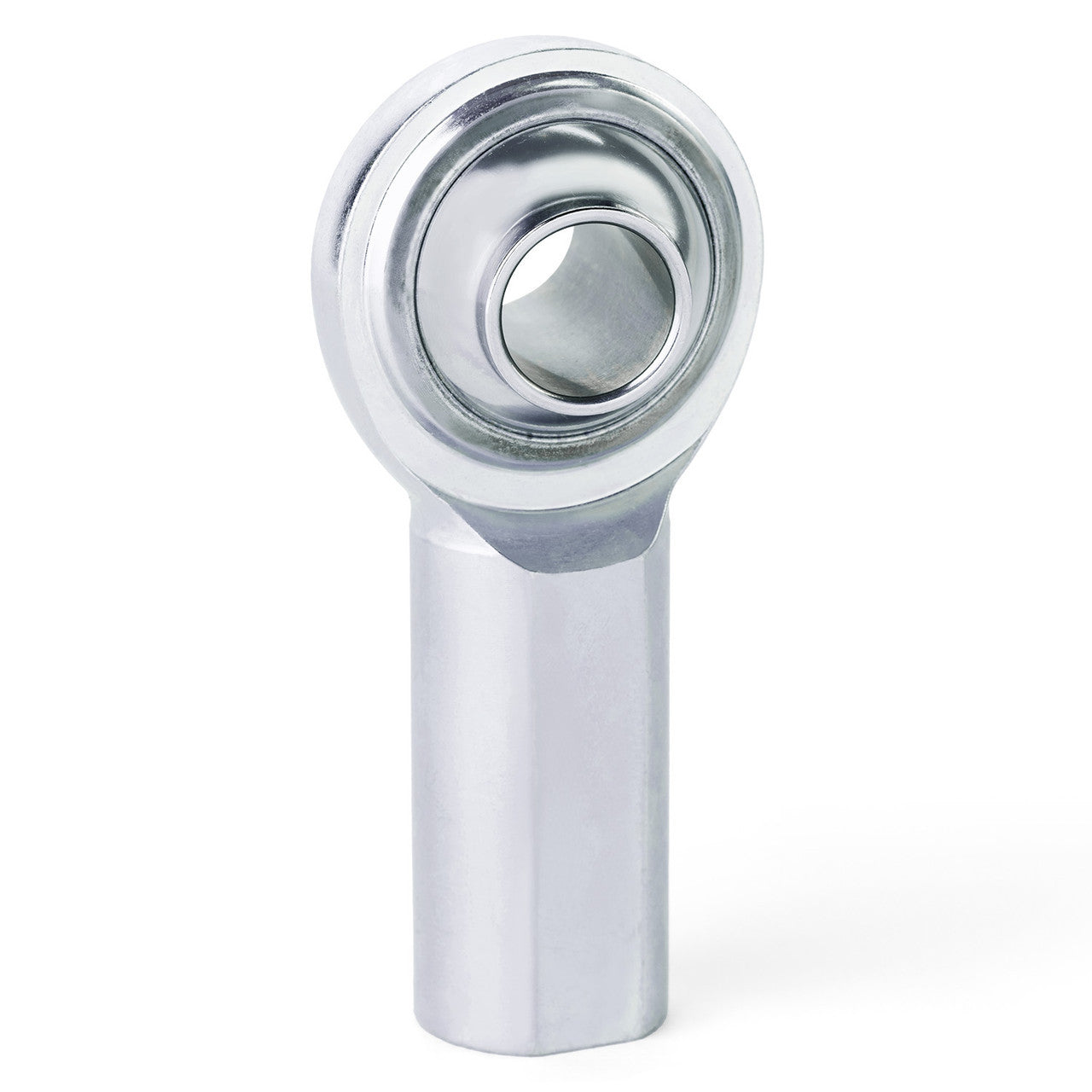

QA1 PCYFR10T PCY Series 2 Piece Alloy High-Misalignment Rod End 5/8in. Bore 5/8in.-18 RH Female Thread PTFE Lined

QA1 PCYFR10T PCY Series 2 Piece Alloy High-Misalignment Rod End 5/8in. Bore 5/8in.-18 RH Female Thread PTFE Lined

QA1’s PCYF-T Series alloy/chromoly steel two-piece male rod ends are available for applications requiring high misalignment. These zinc coated rod ends offer superior load ratings over carbon steel two-piece rod ends and include a self-lubricating PTFE liner. The PCYF-T offers the highest misalignment available in the industry. Available in multiple sizes with right- or left-hand threads.

• BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
• LINER: Self-Lubricating PTFE
• BODY: Zinc Coated, Alloy/Chromoly Steel, Heat Treated

Specifications

• Rod End Series: PCY Series
• Style/Construction: 2 Piece Alloy High-Misalignment
• Bore: 0.6250in. or 5/8in.
• Thread Direction: RH
• Thread Size and Pitch: 5/8in.-18
• Male or Female Thread: Female
• PTFE Lined?: Yes
• Configuration: Standard
