Ridetech 11060297 59-64 IMPALA HQ AIR SUSPENSION SYSTEM W/ COOLRIDE HQ FRONT SHOCKWAVES

Ridetech 11060297 59-64 IMPALA HQ AIR SUSPENSION SYSTEM W/ COOLRIDE HQ FRONT SHOCKWAVES

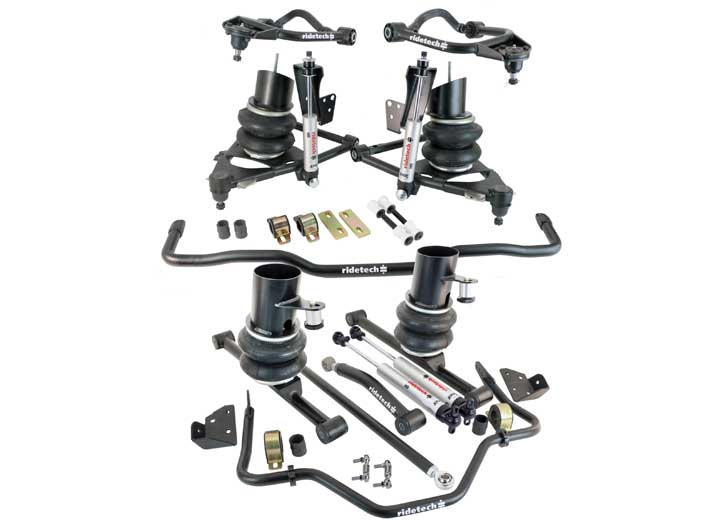

This Air Suspension System is specifically designed for the 1959-1964 Chevy “B” Body cars and includes everything needed to provide an ultra-low show stance while maintaining excellent ride quality and handling.The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series shocks, front and rear air spring w/ brackets, rear tubular trailing arms and an adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hRidetechss collecting data to find the perfect components to acheive maximum vehicle performance and ride quality.

1959-1964 Chevrolet “B” Body includes Impala, Bel Air, Biscayne, Brookwood, El Camino, Kingswood, Nomad & Parkwood.

Features:

• TheUpper StrongArmsfeature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.

• TheLower StrongArmsfeature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front and Rear CoolRidesystems utilizes Firestone air springs and application specific bolt-on mounting brackets.

• HQ Series Shocksutilize an aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the rebound dampening to adjust ride quality and handling. They come standard with a 1,000,0001 Mile Warranty. Bolt-on brackets are included to relocate the front shocks to the rear side of the lower StrongArms. The rear shocks simply bolt in place of the factory shocks.

• TheRear StrongArms provide added strength to help get the power to the pavement. They utilize R-Joint Technology toprovide smooth operation and reduce roll bind. The lower arms feature the air spring bracket for which bolts in place of the stock coil springs, keeping the load where is belongs. An adjustable panhard bar is included to allow the axle to centered at the new ride height.
• Front & Rear MucleBarsare included to replace the tiny factory sway bars (Many of these cars did not even have factory sway bars.) They feature significantly higher rates, performance end links and Delrin lined bushings.

Notes:

• Must be used with 1959-1964 stock spindles. Installing this kit with a drop spindle will cause fitment, geometry/alignment, and ride quality issues.
• Disc brake brackets must mount to the outside face of the spindle.
• If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required.Part # 11059121
• Some cars have two rear upper control arms and will need an additional StrongArm.Part # 11066698
• To complete this Air Suspension system please choose from one of RidetechsCompressor Systems.
