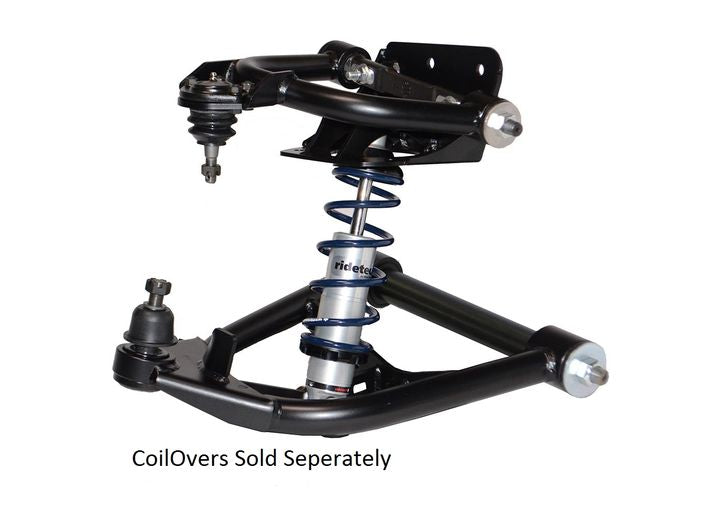

Ridetech 11362699 71-72 CHEVY C10 FRONT STRONGARMS

Ridetech 11362699 71-72 CHEVY C10 FRONT STRONGARMS

What says “performance” more than a set of tubular control arms? After all of the time and effort expended on yRidetechs ride, you definitely can’t let yRidetechs stamped oem control arms detract from all that work. Finish yRidetechs suspension off with these new tubular control arm systems from Ridetech. Built with all of the care and experience you have come to expect from us, these tubular control arms are a precision engineered solution forCoil-Over installation, ball joint binding, and frame clearance issues that can haunt some vehicles. When you combine the performance benefits with the elegant design of these arms, there is no question …You want these.

Designed for use with Ridetech sway bar Part # 11369120.

Development – are developed by in Jasper, Ind. on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to Ridetechs sales techs and dealers, and allows ongoing evaluation of the performance of the

Design – We think the best way to design any component is to keep it simple. That is why Strong are designed with as few components as possible. We have a new 4 axis tubing bender that allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.

Components – We have worked closely with Moog, a major manufacturer of OEM ball joints, to ensure that the proper ball joints have been selected for the Application… a compression style unit in a compression application, a tension ball joint in a tension application. Proper bushings are selected based on application and the type of driving or racing that is anticipated.

Geometry – Geometry of a suspension starts with the position of the frame mounts and the height of the spindle, not the shape of the control arm. However, there are a few small things in control arm design that can make a big difference in how a vehicle drives and performs.

• We create extra caster potential by adjusting the fore and aft position of the ball joints. At the same time we make sure the wheel is properly positioned in the wheel well so yRidetechs new 18″ wheels fit like they should!
• The ball joint camber travel is re-centered to accommodate the new lowered ride height so the ball joint doesn’t bind during extreme suspension movement.
• The perimeter of the StrongArms is contRidetechsed to allow maximum wheel clearance and turning radius.
• All shock mounts, air spring mounts, and sway bar mounts are integrated into the design so you don’t have to finish the engineering in order to enjoy yRidetechs ride!

are optimized to allow proper camber adjustment at yRidetechs new lowered ride height without using a large stack of shims.

All STRONGARMS include ball joints, and bushings. They are bolt-on: ready to install!
