Rockford Fosgate X317-K4 4 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models Gen-3
Rockford Fosgate X317-K4 4 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models Gen-3

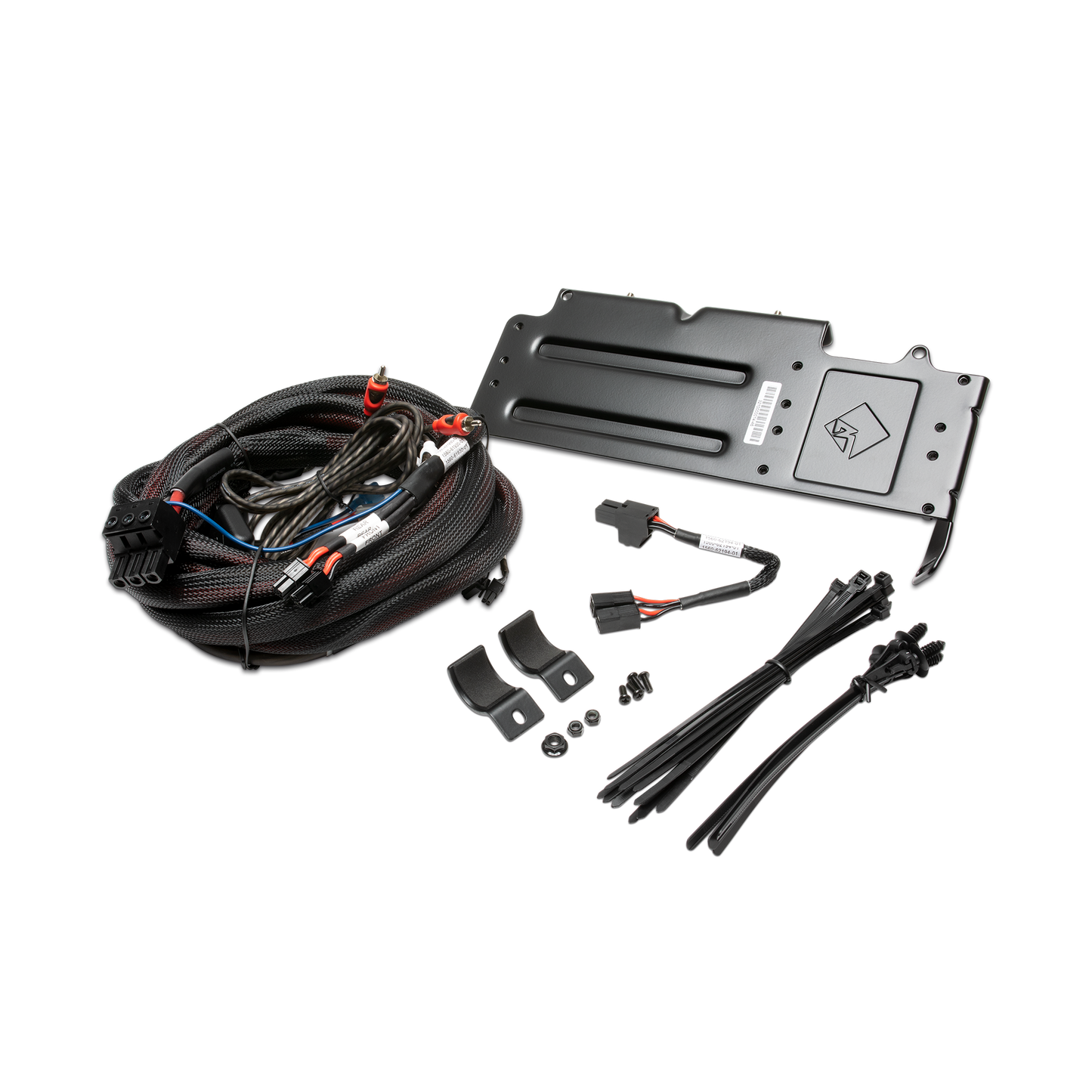

The new 3rd generation single amplifier installation kit features a Color Optix™ Ready wiring harness with 4-gauge power and ground cables with an M5-1500X5 compatible amplifier bracket for select Maverick X3 models. Designed for 2-seat and 4-seat MAX models. Bracket fits underneath dash and attaches to factory steel cage. No cutting or drilling required. Refer to our COMPATIBILITY chart to verify fitment before purchasing. Please contact customer support for replacement parts for your audio kit.
System features a plug and play design, does not require any cutting or drilling of vehicle, step by step install videos available.
FEATURES AT A GLANCE
- Includes amplifier bracket
- Designed for use with 2-seat and 4-seat models
- 1 Year Warranty
- 4 AWG wiring harness
- Pre-cut and loomed power/ground and speaker wire harnesses included
- Designed for use with M5-1500X5 amplifier
- No drilling or cutting required
(1) 17 thru current amp mounting plate
(4) Amp mounting screws
(4) Zip ties
LEGEND
YES |
NO |
NOT AVAILABLE |
|---|
FITMENT
YES |
YES |
YES |
COMPATIBLE(remove to install speakers) |
POSSIBLE(mount cans externally) |
POSSIBLE(mount cans externally) |
|---|
MAVERICK X3 (2-SEAT)
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| X3 900 HO [64] | — | ✔ | — | — | — | — |
| X3 Turbo [64] | — | ✔ | ✔ | ✔ | — | — |
| X3 Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| X3 ds Turbo [64] | — | — | — | — | ✔ | ✔ |
| X3 ds Turbo R [64] | — | — | — | ✔ | ✔ | — |
| X3 ds Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 rs Turbo R [72] | — | — | — | ✔ | — | — |
| X3 rs Turbo RR 72 | — | — | — | — | — | ✔ |
| X3 X ds Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| X3 X ds Turbo RR [64] | — | — | — | ✔ | ✔ | ✔ |
| X3 X mr Turbo [64] ¹ | — | ✔¹ ³ | ✔¹ ³ | ✔¹ | ✔¹ | — |
| X3 X mr Turbo R [72] ¹ | — | ✔¹ ³ | ✔¹ ³ | — | — | — |
| X3 X mr Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 X mr Turbo RR [72] | — | — | — | — | ✔ | ✔ |
| X3 X mr Turbo RR [72] ¹ | — | — | — | ✔¹ | ✔¹ | — |
| X3 X rc Turbo [64] | — | ✔ | ✔³ | ✔ | ✔ | — |
| X3 X rc Turbo R [72] ² | — | X² | X² | — | — | — |
| X3 X rc Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 X rc Turbo RR [72] ² | — | — | — | X² | X² | X² |
| X3 X rs Turbo R [72] | ✔ | ✔ | ✔³ | — | — | — |
| X3 X rs Turbo RR [72] | — | — | — | ✔ | — | ✔ |
| X3 X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✔ | ✔ |
MAVERICK X3 MAX (4-SEAT)
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Maverick X3 MAX Turbo [64] | — | ✔ | ✔ | ✔ | — | — |
| Maverick X3 MAX Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| Maverick X3 MAX ds Turbo [64] | — | — | — | — | ✔ | ✔ |
| Maverick X3 MAX ds Turbo R [64] | — | — | — | ✔ | ✔ | — |
| Maverick X3 MAX ds Turbo RR 64 | — | — | — | — | — | ✔ |
| Maverick X3 MAX rs Turbo R [72] | — | — | — | ✔ | ✔ | — |
| Maverick X3 MAX rs Tubro RR 72 | — | — | — | — | — | ✔ |
| Maverick X3 MAX X ds Turbo R [64] | ✔ | ✔ | ✔³ | — | — | — |
| Maverick X3 MAX X ds Turbo RR [64] | — | — | — | ✔ | ✔ | ✔ |
| Maverick X3 MAX X mr Turbo RR [72] ¹ | — | — | — | ✔¹ | ✔¹ | ✔¹ |
| Maverick X3 MAX X rs Turbo R [72] | ✔ | ✔ | ✔³ | — | — | — |
| Maverick X3 MAX X rs Turbo RR [72] | — | — | — | ✔ | ✔ | ✔ |
| Maverick X3 MAX X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✔ | ✔ |
Charts contain newer naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2
Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3
Smart-Lok™ introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels.
